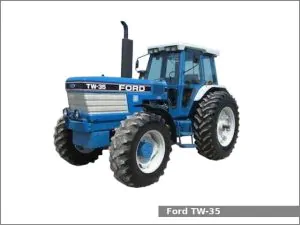

Ford TW-35

Ford TW-35The Ford TW-35 is a 2WD or 4WD row-crop tractor from the TW series. This tractor was manufactured by Ford in Antwerp, Belgium from 1983 to 1986. The Ford TW-35 is equipped with a 6.6 L (401.0 cu·in) six-cylinder diesel engine and a partial power shift transmission with 16 forward and 4 reverse gears.

The Ford TW35 row-crop tractor used the Ford engine. It is a 6.6 L, 6,571 cm2, (401.0 cu·in) six-cylinder turbocharged intercooled diesel engine with 112.0 mm (4.41 in) of the cylinder bore and 112.0 mm (4.41 in) of the piston stroke. The compression ratio rating is 15.6:1. This engine produced 189.6 PS (139.4 kW; 187.0 HP) at 2,200 rpm of output power and 701 N·m (71.5 kg·m, 516.6 ft·lb) at 1,600 rpm of peak torque.

The Ford TW-35 is equipped with hydraulic power steering, differential hydraulic wet disc brakes, cab (standard) with air-conditioning or ROPS (available), and 284.0 liters (75 US gal.; 62.5 Imp. gal) fuel tank.

Ford TW-35 Specifications

General Specifications
Model Ford TW-35
Length 4,530 mm (178.3 in)
Width 2,120 mm (83.5 in)
Height ROPS: 2,910 mm (114.6 in)
Cab: 2,940 mm (115.7 in)
Wheel base 2WD: 2,740 mm (107.9 in)
4WD: 2,810 mm (110.6 in)
Weight (shipping) ROPS: 6,210 kg (13,691 lbs)
Cab: 6,520 kg (14,374 lbs)
Fuel tank capacity 284.0 liters (75 US gal.; 62.5 Imp. gal)
Series II: 378.5 liters (100.0 US gal.; 83.3 Imp. gal)
Battery 12V, 128Ah
Cabin type Cab standard with air-conditioning or ROPS (available)
Engine
Engine model Ford
Engine type Four-stroke, liquid-cooled, inline
Cylinders 6
Fuel type Diesel
Displacement 6.6 L, 6,571 cm2, (401.0 cu·in)
Bore and stroke 112.0 mm X 112.0 mm (4.41 in X 4.41 in)
Compression ratio 15.6:1
Horsepower 189.6 PS (139.4 kW; 187.0 HP) at 2,200 rpm
Torque 701 N·m (71.5 kg·m, 516.6 ft·lb) at 1,600 rpm
Starter Electric
Oil capacity: 18.9 L (20 US. qt, 16.6 Imp. qt.)
Coolant capacity: 21.8 L (23 US. qt, 19.2 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Hydraulic power
Brakes Differential hydraulic wet disc
Differential lock Hydraulic rear
Transmission model Dual Power
Transmission type Partial power shift with dry disc clutch
Gears 16 forward and 4 reverse
Speed Forward: 30.1 kmh (18.7 mph) Reverse: 12.5 kmh (7.8 mph)
Transmission oil capacity 87.1 L (23 US. gal, 19.2 Imp. gal.)
Tires
Front tires Ag: 11.00×16 (2WD), 14.9-24 (4WD)
Rear tires Ag: 18.4×38, 20.8×38, 24.5×32
Three-Point Hitch
Category II or III (optional)
Control type Position control and lower-link draft sensing
Lift capacity (at 610 mm/24 in) 3,245 kg (7,150 lbs)
4,285 kg (9,450 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 1000 rpm
Hydraulic system
Hydraulic type Open center
Hydraulic capacity 87.1 L (23 US. gal, 19.2 Imp. gal.)
Pressure 2500 psi (172.4 bar)
Pump flow 20.0 gpm (75.7 lpm)
Steering flow 4.2 gpm (15.9 lpm)
Total flow 32.2 gpm (121.9 lpm)
