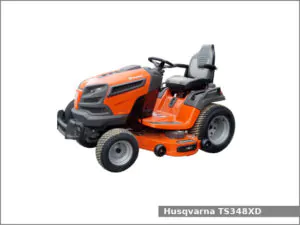

Husqvarna TS 348XD

Husqvarna TS348XDThe Husqvarna TS 348XD is a 2WD garden and lawn tractor manufactured by Husqvarna since 2018. The Husqvarna TS348XD is equipped with a 0.7 L (44.3 cu·in) two-cylinder gasoline engine and a belt-driven hydrostatic transmission with infinite forward and reverse gears.

The Husqvarna TS 348XD garden tractor used the Kawasaki FR730V engine. It is a 0.7 L, 726 cm2, (44.3 cu·in) two-cylinder natural aspirated gasoline engine with 78.0 mm (3.07 in) of the cylinder bore and 76.0 mm (2.99 in) of the piston stroke. This engine produced 24.3 PS (17.9 kW; 24.0 HP) of output power.

The Husqvarna TS 348XD is equipped with manual steering, open operator station, 15.1 liters (4 US gal.; 3.3 Imp. gal) fuel tank, and 48″ (1,210 mm) mower deck.

Husqvarna TS 348XD Specifications

General Specifications
Model Husqvarna TS 348XD
Length
Width
Height
Wheel base
Weight
Fuel tank capacity 15.1 liters (4 US gal.; 3.3 Imp. gal)
Battery 12V, 28Ah, CCA 230A
Cabin type Open operator station
Engine
Engine model Kawasaki FR730V
Engine type Four-stroke, air-cooled, V
Cylinders 2
Fuel type Gasoline
Displacement 0.7 L, 726 cm2, (44.3 cu·in)
Bore and stroke 78.0 mm X 76.0 mm (3.07 in X 2.99 in)
Horsepower 24.3 PS (17.9 kW; 24.0 HP)
Starter Electric
Oil type 5W-30, 30
Oil capacity: 2.1 L (2.2 US. qt, 1.8 Imp. qt.)
Spark plug NGK BRP4ES
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual
Brakes
Differential lock Electric rear
Transmission model Tuff Torq K66
Transmission type Belt-driven hydrostatic
Gears Infinite forward and reverse
Tires
Front tires Lawn/turf: 16×6.5-8
Rear tires Lawn/turf: 23×10.5-12
PTO (Power take-off shaft)
Middle PTO type Independent with electric clutch
Middle PTO speed
