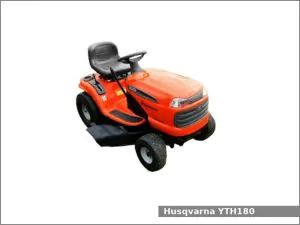

Husqvarna YTH180

Husqvarna YTH180The Husqvarna YTH180 is a 2WD lawn tractor manufactured by Husqvarna from 1994 to 2004. The Husqvarna YTH180 is equipped with a 0.6 L (38.0 cu·in) two-cylinder gasoline engine and a belt-driven hydrostatic transmission with infinite forward and reverse gears.

The Husqvarna YTH180 lawn tractor used the Kohler CV18S engine. It is a 0.6 L, 622 cm2, (38.0 cu·in) two-cylinder natural aspirated gasoline engine with 77.0 mm (3.03 in) of the cylinder bore and 67.0 mm (2.64 in) of the piston stroke. This engine produced 18.2 PS (13.4 kW; 18.0 HP) at 3,600 rpm of output power.

The Husqvarna YTH180 is equipped with manual steering, an open operator station, 15.1 liters (4 US gal.; 3.3 Imp. gal) fuel tank, and a mid-mount Husqvarna 46 inch (1,160 mm) mower deck with 3-blade.

Husqvarna YTH180 Specifications

General Specifications
Model Husqvarna YTH180
Length 1,690 mm (66.5 in)
Width 1,220 mm (48 in)
Height 1,010 mm (39.8 in)
Wheel base 1,200 mm (47.2 in)
Weight 210 kg (463 lbs)
Fuel tank capacity 15.1 liters (4 US gal.; 3.3 Imp. gal)
Battery 12V
Cabin type Open operator station
Engine
Engine model Kohler CV18S
Engine type Four-stroke, air-cooled
Cylinders 2
Fuel type Gasoline
Displacement 0.6 L, 622 cm2, (38.0 cu·in)
Bore and stroke 77.0 mm X 67.0 mm (3.03 in X 2.64 in)
Horsepower 18.2 PS (13.4 kW; 18.0 HP) at 3,600 rpm
Starter Electric
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual
Brakes
Transmission model Hydro-Gear
Transmission type Belt-driven hydrostatic
Gears Infinite forward and reverse
Tires
Front tires Lawn/turf: 16×6.50-8
Rear tires Lawn/turf: 20×10.00-8
