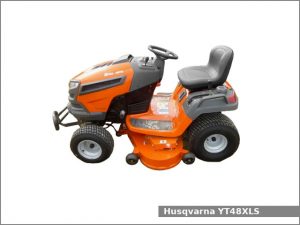

The Husqvarna YT48XLS is a 2WD lawn tractor manufactured by Husqvarna from 2013 to 2020.
The Husqvarna YT48XLS is equipped with one of three engines: a 726 cc (44.3 cu·in) two-cylinder gasoline engine (Kawasaki FR730V), a 747 cc (45.6 cu·in) two-cylinder gasoline engine (Kohler KT745), or a 724 cc (44.2 cu·in) two-cylinder gasoline engine (Kohler KT725) and a belt-driven hydrostatic transmission with infinite forward and reverse gears.
The tractor could be equipped with the following engines:
- Kawasaki FR730V. It is a 0.7 L, 726 cm2, (44.3 cu·in) two-cylinder natural aspirated gasoline engine with 78.0 mm (3.07 in) of the cylinder bore and 76.0 mm (2.99 in) of the piston stroke. This engine produced 24.3 PS (17.9 kW; 24.0 HP) at 3,600 rpm of output power.
- Kohler KT745. It is a 0.7 L, 747 cm2, (45.6 cu·in) two-cylinder natural aspirated gasoline engine. The cylinder bore is 83.0 mm (3.27 in) and the piston stroke is 69.0 mm (2.72 in). This engine produced 26.4 PS (19.4 kW; 26.0 HP) at 3,600 rpm of output power.
- Kohler KT725. It is a 0.7 L, 724 cm2, (44.3 cu·in) two-cylinder natural aspirated gasoline engine. The cylinder bore is 83.0 mm (3.27 in) and the piston stroke is 66.0 mm (2.60 in). This engine produced 26.4 PS (19.4 kW; 26.0 HP) at 3,600 rpm of output power.
The Husqvarna YT48XLS is equipped with manual steering, open operator station and 15.1 liters (4 US gal.; 3.3 Imp. gal) fuel tank.
Husqvarna YT48XLS Specifications
| General Specifications | |
| Model | Husqvarna YT48XLS |
| Length | 1,750 mm (68.9 in) |
| Width | 1,230 mm (48.4 in) |
| Height | 1,050 mm (41.3 in) |
| Wheel base | 1,210 mm (47.6 in) |
| Weight | 270 kg (595 lbs) |
| Fuel tank capacity | 15.1 liters (4 US gal.; 3.3 Imp. gal) |
| Battery | 12V, 230CCA, Group U1R |
| Cabin type | Open operator station |
| Engine | |
| Engine model | Kawasaki FR730V |
| Engine type | Four-stroke, air-cooled, V-twin |
| Cylinders | 2 |
| Fuel type | Gasoline |
| Displacement | 0.7 L, 726 cm2, (44.3 cu·in) |
| Bore and stroke | 78.0 mm X 76.0 mm (3.07 in X 2.99 in) |
| Horsepower | 24.3 PS (17.9 kW; 24.0 HP) at 3,600 rpm |
| Torque | 53.8 N·m (5.5 kg·m, 39.7 ft·lb) at 2,400 rpm |
| Starter | Electric |
| Oil type | SAE 30, 5W-30 |
| Oil capacity: | 2.0 L (2.1 US. qt, 1.8 Imp. qt.) |
| Spark plug | NGK BPR4ES |
| Engine | |
| Engine model | Kohler KT745 |
| Engine type | Four-stroke, air-cooled, V-twin |
| Cylinders | 2 |
| Fuel type | Gasoline |
| Displacement | 0.7 L, 747 cm2, (45.6 cu·in) |
| Bore and stroke | 83.0 mm X 69.0 mm (3.27 in X 2.72 in) |
| Horsepower | 26.4 PS (19.4 kW; 26.0 HP) at 3,600 rpm |
| Starter | Electric |
| Oil capacity: | 1.9 L (2 US. qt, 1.7 Imp. qt.) |
| Engine | |
| Engine model | Kohler KT725 |
| Engine type | Four-stroke, air-cooled, V-twin |
| Cylinders | 2 |
| Fuel type | Gasoline |
| Displacement | 0.7 L, 724 cm2, (44.2 cu·in) |
| Bore and stroke | 83.0 mm X 66.0 mm (3.27 in X 2.60 in) |
| Horsepower | 26.4 PS (19.4 kW; 26.0 HP) at 3,600 rpm |
| Starter | Electric |
| Oil capacity: | 1.9 L (2 US. qt, 1.7 Imp. qt.) |
| Transmission and chassis | |
| Chassis | 4×2 2WD |
| Steering type | Manual |
| Brakes | – |
| Differential lock | Rear standard |
| Transmission model | Tuff Torq K46 |
| Transmission type | Belt-driven hydrostatic |
| Gears | Infinite forward and reverse |
| Speed | Forward: 8.8 kmh (5.5 mph) Reverse: 3.9 kmh (2.4 mph) |
| Tires | |
| Front tires | Lawn/turf: 16×6.5-8 |
| Rear tires | Lawn/turf: 20×10-8 |
| PTO (Power take-off shaft) | |
| Middle PTO type | Independent with electric clutch |
| Middle PTO speed | – |
