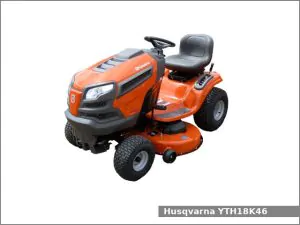

Husqvarna YTH18K46

Husqvarna YTH18K46The Husqvarna YTH18K46 is a 2WD lawn tractor manufactured by Husqvarna from 2013. The Husqvarna YTH18K46 is equipped with a 0.6 L (36.8 cu·in) two-cylinder gasoline engine and a belt-driven hydrostatic transmission with infinite forward and reverse gears.

The Husqvarna YTH18K46 lawn tractor used the Kawasaki FR600V engine. It is a 0.6 L, 603 cm2, (36.8 cu·in) two-cylinder natural aspirated gasoline engine with 73.0 mm (2.87 in) of the cylinder bore and 72.0 mm (2.83 in) of the piston stroke. The compression ratio rating is 8.1:1. This engine produced 18.8 PS (13.8 kW; 18.5 HP) at 3,600 rpm of output power.

The Husqvarna YTH18K46 is equipped with manual steering, open operator station and 11.4 liters (3 US gal.; 2.5 Imp. gal) fuel tank and mid-mount 1,160 mm (46 inches) mower deck with 2-blade.

Husqvarna YTH18K46 Specifications

General Specifications
Model Husqvarna YTH18K46
Length 1,760 mm (69.3 in)
Width 1,210 mm (47.6 in)
Height 1,050 mm (41.3 in)
Wheel base 1,210 mm (47.6 in)
Weight 196 kg (432 lbs)
Fuel tank capacity 11.4 liters (3 US gal.; 2.5 Imp. gal)
Battery 12V, CCA 230A, Group U1R
Cabin type Open operator station
Engine
Engine model Kawasaki FR600V
Engine type Four-stroke, air-cooled, V
Cylinders 2
Fuel type Gasoline
Displacement 0.6 L, 603 cm2, (36.8 cu·in)
Bore and stroke 73.0 mm X 72.0 mm (2.87 in X 2.83 in)
Compression ratio 8.1:1
Horsepower 18.8 PS (13.8 kW; 18.5 HP) at 3,600 rpm
Torque 43.9 N·m (4.5 kg·m, 32.4 ft·lb) at 2,200 rpm
Starter Electric
Oil type SAE 30, 5W-30
Oil capacity: 1.9 L (2 US. qt, 1.7 Imp. qt.)
Spark plug NGK BPR4ES
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual
Brakes –
Transmission model Tuff Torq K46
Transmission type Belt-driven hydrostatic
Gears Infinite forward and reverse
Speed Forward: 8.4 kmh (5.2 mph) Reverse: 4.7 kmh (2.9 mph)
Tires
Front tires Lawn/turf: 15×6-6
Rear tires Lawn/turf: 20×8-8
PTO (Power take-off shaft)
Middle PTO type Independent with manual clutch
Middle PTO speed –
