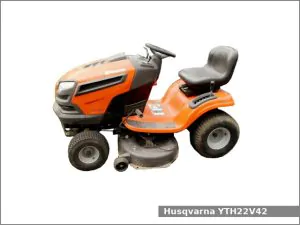

Husqvarna YTH22V42

Husqvarna YTH22V42The Husqvarna YTH22V42 is a 2WD lawn tractor manufactured by Husqvarna during 2012. The Husqvarna YTH22V42 is equipped with a 0.7 L (40.0 cu·in) two-cylinder gasoline engine and a belt-driven hydrostatic transmission with infinite forward and reverse gears.

The Husqvarna YTH22V42 lawn tractor used the Briggs & Stratton 407777 engine. It is a 0.7 L, 656 cm2, (40.0 cu·in) two-cylinder natural aspirated gasoline engine with 75.0 mm (2.95 in) of the cylinder bore and 73.0 mm (2.87 in) of the piston stroke. This engine produced 23.4 PS (17.2 kW; 23.0 HP) at 3,600 rpm of output power.

The Husqvarna YTH22V42 is equipped with manual steering, – brakes, Open operator station and 9.5 liters (2.5 US gal.; 2.1 Imp. gal) fuel tank.

Husqvarna YTH22V42 Specifications

General Specifications
Model Husqvarna YTH22V42
Length 1,750 mm (68.9 in)
Width 1,100 mm (43.3 in)
Height 1,050 mm (41.3 in)
Wheel base 1,210 mm (47.6 in)
Ground clearance 194 mm (7.6 in)
Weight –
Fuel tank capacity 9.5 liters (2.5 US gal.; 2.1 Imp. gal)
Battery 12V, CCA 230A, Group U1R
Cabin type Open operator station
Engine
Engine model Briggs & Stratton 407777
Engine type Four-stroke, air-cooled, V
Cylinders 2
Fuel type Gasoline
Displacement 0.7 L, 656 cm2, (40.0 cu·in)
Bore and stroke 75.0 mm X 73.0 mm (2.95 in X 2.87 in)
Horsepower 23.4 PS (17.2 kW; 23.0 HP) at 3,600 rpm
Starter Electric
Oil capacity: 1.9 L (2 US. qt, 1.7 Imp. qt.)
Spark plug Champion QC12YC
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual
Brakes –
Transmission model Tuff Torq K46
Transmission type Belt-driven hydrostatic
Gears Infinite forward and reverse
Speed Forward: 8.4 kmh (5.2 mph) Reverse: 4.7 kmh (2.9 mph)
Tires
Front tires Lawn/turf: 15×6-6
Rear tires Lawn/turf: 20×8-8
PTO (Power take-off shaft)
Middle PTO type Independent with manual clutch
Middle PTO speed –
