Husqvarna YTH2042

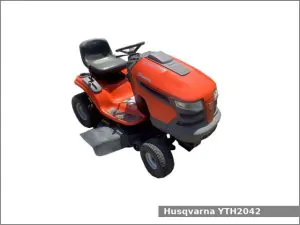

Husqvarna YTH2042The Husqvarna YTH2042 is a 2WD lawn tractor manufactured by Husqvarna in from 2005 to 2013. The Husqvarna YTH2042 is equipped with a 0.5 L (33.0 cu·in) single-cylinder gasoline engine and a belt-driven hydrostatic transmission with infinite forward and reverse gears.

The Husqvarna YTH2042 lawn tractor used the Briggs & Stratton 331777 engine. It is a 0.5 L, 540 cm2, (33.0 cu·in) single-cylinder natural aspirated gasoline engine with 94.0 mm (3.7 in) of the cylinder bore and 78.0 mm (3.07 in) of the piston stroke. This engine produced 20.3 PS (14.9 kW; 20.0 HP) at 3,600 rpm of output power.

The Husqvarna YTH2042 is equipped with manual steering, an open operator station, 9.5 liters (2.5 US gal.; 2.1 Imp. gal) fuel tank, and a mid-mount 42 inches (1,060 mm) mower deck with 2-blade.

Husqvarna YTH2042 Specifications

General Specifications
ModelHusqvarna YTH2042
Length1,750 mm (68.9 in)
Width1,110 mm (43.7 in)
Height1,050 mm (41.3 in)
Wheel base1,210 mm (47.6 in)
Weight190 kg (419 lbs)
Fuel tank capacity9.5 liters (2.5 US gal.; 2.1 Imp. gal)
Battery12V, 28Ah, Group U1R
Cabin typeOpen operator station
Engine
Engine modelBriggs & Stratton 331777
Engine typeFour-stroke, air-cooled
Cylinders1
Fuel typeGasoline
Displacement0.5 L, 540 cm2, (33.0 cu·in)
Bore and stroke94.0 mm X 78.0 mm (3.7 in X 3.07 in)
Horsepower20.3 PS (14.9 kW; 20.0 HP) at 3,600 rpm
StarterElectric
Oil typeSAE 30, 5W-30
Oil capacity:1.7 L (1.8 US. qt, 1.5 Imp. qt.)
Spark plugChamion RC12YC
Transmission and chassis
Chassis4×2 2WD
Steering typeManual
Brakes–
Transmission modelTuff Torq K46
Transmission typeBelt-driven hydrostatic
GearsInfinite forward and reverse
Speed Forward: 8.4 kmh (5.2 mph) Reverse: 4.7 kmh (2.9 mph)
Tires
Front tires Ag: 15×6-6
Rear tires Ag: 20×8-8
PTO (Power take-off shaft)
Middle PTO typeIndependent with manual clutch
Middle PTO speed–
