Husqvarna YTH21K46

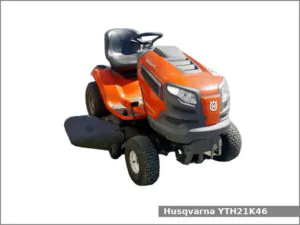

Husqvarna YTH21K46The Husqvarna YTH21K46 is a 2WD lawn tractor manufactured by Husqvarna during 2012. The Husqvarna YTH21K46 is equipped with a 0.6 L (36.4 cu·in) single-cylinder gasoline engine and a belt-driven hydrostatic transmission with infinite forward and reverse gears.

The Husqvarna YTH21K46 lawn tractor used the Kohler SV610 engine. It is a 0.6 L, 597 cm2, (36.4 cu·in) single-cylinder natural aspirated gasoline engine with 94.0 mm (3.7 in) of the cylinder bore and 86.0 mm (3.39 in) of the piston stroke. The compression ratio rating is 8.5:1. This engine produced 21.4 PS (15.7 kW; 21.0 HP) of output power.

The Husqvarna YTH21K46 is equipped with an open operator station, 9.5 liters (2.5 US gal.; 2.1 Imp. gal) fuel tank, and mid-mount 1,160 mm (46 inches) mower deck with 2-blades.

Husqvarna YTH21K46 Specifications

General Specifications
Model Husqvarna YTH21K46
Length 1,750 mm (68.9 in)
Width 1,210 mm (47.6 in)
Height 1,050 mm (41.3 in)
Wheel base 1,210 mm (47.6 in)
Weight 199 kg (439 lbs)
Fuel tank capacity 9.5 liters (2.5 US gal.; 2.1 Imp. gal)
Battery 12V, Group U1R, 28Ah, CCA 230A
Cabin type Open operator station
Engine
Engine model Kohler SV610
Engine type Four-stroke, air-cooled, inline
Cylinders 1
Fuel type Gasoline
Displacement 0.6 L, 597 cm2, (36.4 cu·in)
Bore and stroke 94.0 mm X 86.0 mm (3.7 in X 3.39 in)
Compression ratio 8.5:1
Horsepower 21.4 PS (15.7 kW; 21.0 HP)
Starter Electric
Oil capacity: 1.5 L (1.6 US. qt, 1.3 Imp. qt.)
Spark plug Champion RC12YC
Transmission and chassis
Chassis 4×2 2WD
Steering type –
Brakes –
Transmission model Tuff Torq K46
Transmission type Belt-driven hydrostatic
Gears Infinite forward and reverse
Speed Forward: 8.4 kmh (5.2 mph) Reverse: 4.7 (2.9 mph)
Tires
Front tires Lawn/turf: 15×6-6
Rear tires Lawn/turf: 20×8-8
PTO (Power take-off shaft)
Middle PTO type Independent with manual clutch
Middle PTO speed –
