Husqvarna YTH24K48

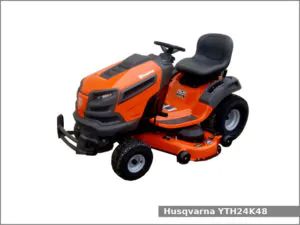

Husqvarna YTH24K48The Husqvarna YTH24K48 Fast Tractor is a 2WD lawn tractor manufactured by Husqvarna from 2012. The Husqvarna YTH24K48 is equipped with a 0.7 L (44.2 cu·in) two-cylinder gasoline engine and a belt-driven hydrostatic transmission with infinite forward and reverse gears.

The Husqvarna YTH24K48 lawn tractor used the Kohler SV725 engine. It is a 0.7 L, 725 cm2, (44.2 cu·in) V-twin natural aspirated gasoline engine with 83.0 mm (3.27 in) of the cylinder bore and 67.0 mm (2.64 in) of the piston stroke. The compression ratio rating is 9.0:1. This engine produced 24.3 PS (17.9 kW; 24.0 HP) of output power.

The Husqvarna YTH24K48 is equipped with an open operator station, 11.4 liters (3 US gal.; 2.5 Imp. gal) fuel tank, and mid-mount 1,210 mm (48 inches) mower deck with 3-blades.

Husqvarna YTH24K48 Specifications

General Specifications
Model Husqvarna YTH24K48
Length 1,760 mm (69.3 in)
Width 1,290 mm (50.8 in)
Height 1,050 mm (41.3 in)
Wheel base 1,210 mm (47.6 in)
Weight 222 kg (489 lbs)
Fuel tank capacity 11.4 liters (3 US gal.; 2.5 Imp. gal)
Battery 12V, Group U1R, 28Ah, CCA 230A
Cabin type Open operator station
Engine
Engine model Kohler SV725
Engine type Four-stroke, air-cooled, inline
Cylinders 2
Fuel type Gasoline
Displacement 0.7 L, 725 cm2, (44.2 cu·in)
Bore and stroke 83.0 mm X 67.0 mm (3.27 in X 2.64 in)
Compression ratio 9.0:1
Horsepower 24.3 PS (17.9 kW; 24.0 HP)
Starter Electric
Oil type SG or SL, SAE 10W30
Oil capacity: 1.9 L (2 US. qt, 1.7 Imp. qt.)
Spark plug Champion RC12YC
Transmission and chassis
Chassis 4×2 2WD
Steering type –
Brakes –
Transmission model Tuff Torq K57
Transmission type Belt-driven hydrostatic
Gears Infinite forward and reverse
Speed Forward: 12.6 kmh (7.8 mph) Reverse: 4.7 (2.9 mph)
Tires
Front tires Lawn/turf: 15×6-6
Rear tires Lawn/turf: 20×8-8
PTO (Power take-off shaft)
Middle PTO type Independent with electric clutch
Middle PTO speed –
ATTENTION! Dear visitors, this site is not a trading platform, an official dealer or a spare parts supplier, so we do not have any price lists, spare parts catalogs, service or owner manuals. We are an information portal and provide the technical specifications.

We try to use verified sources and official documentation, however, differences between sources or errors in entering information may occur. In addition, the characteristics may vary depending on the modification and market. We do not provide advice on technical issues related to the any operation or repair. We do not recommend using provided information for repairing or spare parts ordering, use only official service manuals and spare-parts catalogs.
