J.I. Case 580C

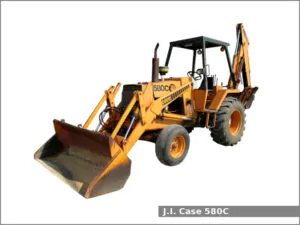

J.I. Case 580C Construction KingThe J.I. Case 580C is a 2WD industrial tractor manufactured by J.I. Case from 1975 to 1980. The J.I. Case 580C is equipped with a 3.4 L (207.0 cu·in) four-cylinder diesel engine and one of two transmissions: a mechanical shuttle transmission with 8 forward and 8 reverse gears and with dry disc clutch or a power shuttle transmission with 4 forward and 4 reverse gears.

The J.I. Case 580C industrial tractor used the J.I. Case G207D engine. It is a 3.4 L, 3,392 cm2, (207.0 cu·in) four-cylinder natural aspirated diesel engine with 101.6 mm (4 in) of the cylinder bore and 105.0 mm (4.13 in) of the piston stroke. The compression ratio rating is 17.0:1. This engine produced 50.7 PS (37.3 kW; 50.0 HP) at 2,100 rpm of net output power.

The J.I. Case 580C is equipped with hydrostatic power steering, and Four-post ROPS or cab (optional).

Following attachments are available for the J.I. Case 580C Construction King industrial tractor:

  • J.I. Case loader
  • J.I. Case backhoe
  • J.I. Case Extendahoe backhoe

J.I. Case 580C Construction King Specifications

General Specifications
Model J.I. Case 580C
Length
Width
Height
Wheelbase 2,080 mm (81.9 in)
Weight (operating) 5,240 kg (11,550 lbs)
Fuel tank capacity
Battery 12V
Cabin type Four-post ROPS or cab (optional)
Engine
Engine model J.I. Case G207D
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 3.4 L, 3,392 cm2, (207.0 cu·in)
Bore and stroke 101.6 mm X 105.0 mm (4 in X 4.13 in)
Compression ratio 17.0:1
Horsepower 50.7 PS (37.3 kW; 50.0 HP) at 2,100 rpm
Starter Electric
Transmission and chassis
Chassis 4×2 2WD
Steering type Hydrostatic power
Brakes
Differential lock Rear standard
Transmission model
Transmission type Mechanical shuttle with dry disc clutch
Gears 8 forward and 8 reverse
Transmission model
Transmission type Power shuttle
Gears 4 forward and 4 reverse
Tires
Front tires Industrial: 7.50×16
Rear tires Industrial: 14.9×24
PTO (Power take-off shaft)
Rear PTO type Optional
Rear PTO speed 540 rpm
