J.I. Case 3294

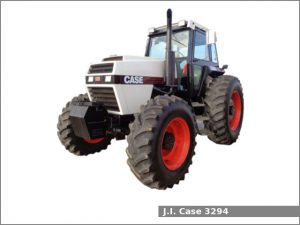

J.I. Case 3294The J.I. Case 3294 is a 4WD row-crop tractor from the 94 series. This tractor was manufactured by J.I. Case in Racine, Wisconsin, USA from 1984 to 1985. The J.I. Case 3294 is equipped with a 8.3 L (504.0 cu·in) six-cylinder diesel engine and a three-speed power shift transmission with 12 forward and 3 reverse gears.

The J.I. Case 3294 row-crop tractor used the Case engine. It is a 8.3 L, 8,259 cm2, (504.0 cu·in) six-cylinder turbocharged diesel engine with 117.0 mm (4.61 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. This engine produced 199.8 PS (146.9 kW; 197.0 HP) at 2,100 rpm of output power.

The J.I. Case 3294 is equipped with power steering, wet disc brakes, Silent Guardian cab with air-conditioning and 246.0 liters (65 US gal.; 54.1 Imp. gal) fuel tank.

J.I. Case 3294 Specifications

General Specifications
Model J.I. Case 3294
Length
Width 2,430 mm (95.7 in)
Optional axle: 3,040 mm (119.7 in)
Height
Wheel base 2,640 mm (103.9 in)
Weight 8,164 kg (17,999 lbs)
Fuel tank capacity 246.0 liters (65 US gal.; 54.1 Imp. gal)
Battery 12V
Cabin type Silent Guardian cab with air-conditioning
Engine
Engine model Case
Engine type Four-stroke, liquid-cooled, inline
Cylinders 6
Fuel type Diesel
Displacement 8.3 L, 8,259 cm2, (504.0 cu·in)
Bore and stroke 117.0 mm X 127.0 mm (4.61 in X 5 in)
Horsepower 199.8 PS (146.9 kW; 197.0 HP) at 2,100 rpm
Starter Electric
Oil capacity: 28.4 L (30 US. qt, 25 Imp. qt.)
Coolant capacity: 41.6 L (44 US. qt, 36.6 Imp. qt.)
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Power
Brakes Wet disc
Transmission model
Transmission type Three-speed power shift
Gears 12 forward and 3 reverse
Speed Forward: 29.1 kmh (18.1 mph) Reverse: 13.0 kmh (8.1 mph)
Transmission oil capacity 106.0 L (28 US. gal, 23.3 Imp. gal.)
Tires
Front tires Ag: 11.00×16
Ag (optional): 14Lx16
Rear tires Ag: 18.4×38
Ag (optional): 23.1×34, 16.9×38, 20.8×38
Three-Point Hitch
Category III/II
Control type
Lift capacity (at 610 mm/24 in) 2,993 kg (6,600 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 1000 rpm
Hydraulic system
Hydraulic type Closed center
Hydraulic capacity 121.1 L (32 US. gal, 26.6 Imp. gal.)
Pressure 2250 psi (155.1 bar)
Valves 2 to 4
Pump flow 23.0 gpm (87.1 lpm)
Total flow 8.0 gpm (30.3 lpm)
