J.I. Case 440

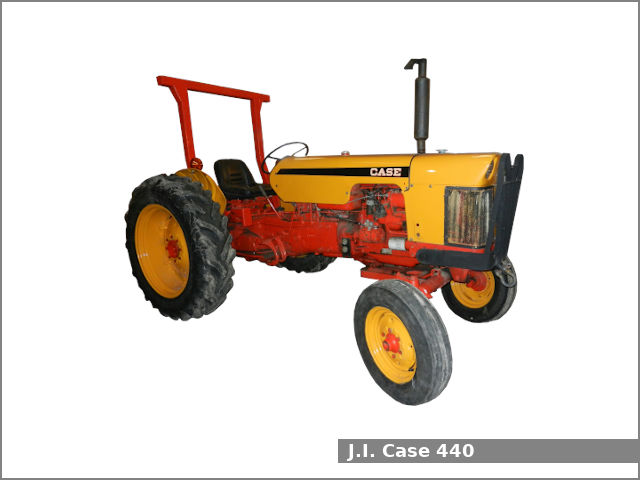

J.I. Case 440The J.I. Case 440 is a 2WD utility tractor manufactured by J.I. Case in Rock Island, Illinois, USA and Racine, Wisconsin, USA from 1960 to 1969. The J.I. Case 440 is equipped with a 2.4 L (148.0 cu·in) four-cylinder gasoline engine and one of three transmissions: a unsynchronized gear transmission with 4 forward and 1 reverse gears, a unsynchronized gear transmission with 12 forward and 3 reverse gears or a mechanical shuttle transmission with 8 forward and 8 reverse gears.

The J.I. Case 440 utility tractor used the J.I. Case engine. It is a 2.4 L, 2,425 cm2, (148.0 cu·in) four-cylinder natural aspirated gasoline engine with 86.0 mm (3.39 in) of the cylinder bore and 114.0 mm (4.49 in) of the piston stroke. The compression ratio rating is 7.1:1. This engine produced 33.5 PS (24.6 kW; 33.0 HP) at 1,750 rpm of output power.

The J.I. Case 440 is equipped with manual or power (after 1965) steering, mechanical band/disc brakes, Open operator station and 49.2 liters (13 US gal.; 10.8 Imp. gal) fuel tank.

J.I. Case 440 Specifications

General Specifications
ModelJ.I. Case 440
Length3,300 mm (129.9 in)
Width1,550 mm (61 in)
Height (hood)1,280 mm (50.4 in)
Wheel base1,910 mm (75.2 in)
Weight (shipping)1,417 kg (3,124 lbs)
Fuel tank capacity49.2 liters (13 US gal.; 10.8 Imp. gal)
Cabin typeOpen operator station
Engine modelJ.I. Case
Engine typeFour-stroke, liquid-cooled, inline
Fuel typeGasoline
Displacement2.4 L, 2,425 cm2, (148.0 cu·in)
Bore and stroke86.0 mm X 114.0 mm (3.39 in X 4.49 in)
Compression ratio7.1:1
Horsepower33.5 PS (24.6 kW; 33.0 HP) at 1,750 rpm
Oil capacity:4.7 L (5 US. qt, 4.1 Imp. qt.)
Coolant capacity:11.4 L (12 US. qt, 10 Imp. qt.)
Transmission and chassis
Chassis4×2 2WD
Steering typeManual or power (1965 +)
BrakesMechanical band/disc
Transmission model
Transmission typeUnsynchronized gear with dry disc clutch
Gears4 forward and 1 reverse
Speed Forward: 19.1 kmh (11.9 mph) Reverse: 4.8 kmh (3 mph)
Transmission modelTripl-Range
Transmission typeUnsynchronized gear with dry disc clutch
Gears12 forward and 3 reverse
Speed Forward: 31.9 kmh (19.8 mph) Reverse: 7.9 kmh (4.9 mph)
Transmission modelDual-Range Shuttle
Transmission typeMechanical shuttle with dry disc clutch
Gears8 forward and 8 reverse
Front tires Ag: 6.00×16, 7.50×16
Rear tires Ag: 11×24, 13×24
Three-Point Hitch
TypeCase Eagle Hitch
Control typeDraft-o-Matic draft control
Lift capacity (at ends)
PTO (Power take-off shaft)
Rear PTO typeLive or independent (optional)
Rear PTO speed540, 540/1000 rpm
Hydraulic system
Hydraulic typeDual-Control
