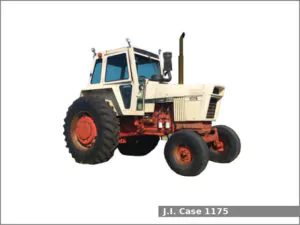

The J.I. Case 1175 is a 2WD row-crop tractor manufactured by J.I. Case in Racine, Wisconsin, USA from 1971 to 1978. The J.I. Case 1175 is equipped with a 7.4 L (451.0 cu·in) six-cylinder diesel engine and a transmission with 8 forward and 2 reverse gears.
The J.I. Case 1175 row-crop tractor used the J.I. Case engine. It is a 7.4 L, 7,391 cm2, (451.0 cu·in) six-cylinder turbocharged diesel engine with 111.0 mm (4.37 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. The compression ratio rating is 16.5:1. This engine produced 123.8 PS (91.0 kW; 122.0 HP) at 2,100 rpm of PTO output power.
The J.I. Case 1175 is equipped with power steering, hydraulic dry disc brakes, open operator station or Cab (optional) and 189.3 liters (50 US gal.; 41.6 Imp. gal) fuel tank.
J.I. Case 1175 Specifications
|Model||J.I. Case 1175|
|Weight||4,620 kg (10,185 lbs)|
|Fuel tank capacity||189.3 liters (50 US gal.; 41.6 Imp. gal)|
|Cabin type||Open operator station or Cab (optional)|
|Engine model||J.I. Case|
|Engine type||Four-stroke, liquid-cooled, inline|
|Displacement||7.4 L, 7,391 cm2, (451.0 cu·in)|
|Bore and stroke||111.0 mm X 127.0 mm (4.37 in X 5 in)|
|Horsepower||123.8 PS (91.0 kW; 122.0 HP) at 2,100 rpm|
|Coolant capacity:||37.9 L (40 US. qt, 33.3 Imp. qt.)|
|Transmission and chassis|
|Brakes||Hydraulic dry disc|
|Gears||8 forward and 2 reverse|
|Speed||Forward: 24.1 kmh (15 mph) Reverse: 12.2 (7.6 mph)|
|Front tires||Ag: 10.00-16|
|Rear tires||Ag: 18.4-38|
|Control type||Lower-link draft sensing|
|Lift capacity (at ends)||–|
|PTO (Power take-off shaft)|
|Rear PTO type||Independent|
|Rear PTO speed||1000, 540/1000 rpm|
We try to use verified sources and official documentation, however, differences between sources or errors in entering information may occur. In addition, the characteristics may vary depending on the modification and market. We do not provide advice on technical issues related to the any operation or repair. We do not recommend using provided information for repairing or spare parts ordering, use only official service manuals and spare-parts catalogs.
