J.I. Case 1390

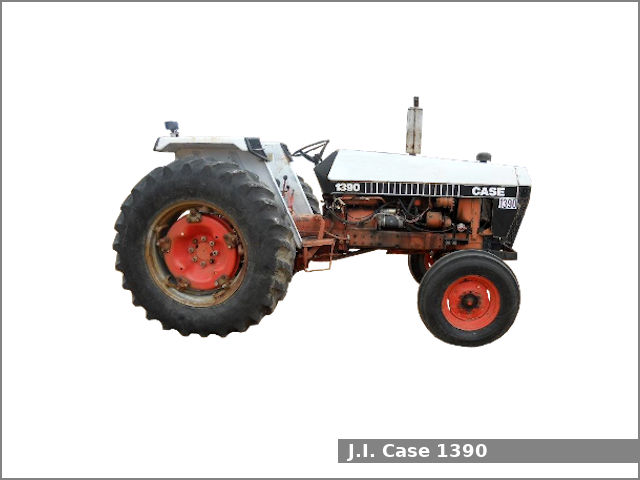

J.I. Case 1390The J.I. Case 1390 is a 2WD or 4WD utility tractor from the 90 series. This tractor was manufactured by J.I. Case in Meltham Mills, Huddersfield, England from 1980 to 1983. The J.I. Case 1390 is equipped with a 3.6 L (219.0 cu·in) four-cylinder diesel engine and a synchromesh transmission with 12 forward and 4 reverse gears and hydraulic dry disc clutch.

The J.I. Case 1390 utility tractor used the J.I. Case engine. It is a 3.6 L, 3,589 cm2, (219.0 cu·in) four-cylinder natural aspirated diesel engine with 100.0 mm (3.94 in) of the cylinder bore and 114.0 mm (4.49 in) of the piston stroke. The compression ratio rating is 17.0:1. This engine produced 60.8 PS (44.7 kW; 60.0 HP) at 2,200 rpm of PTO output power.

The J.I. Case 1390 is equipped with hydrostatic power steering, mechanical drum brakes, two-post ROPS or cab (optional), and 71.9 liters (19 US gal.; 15.8 Imp. gal) fuel tank.

J.I. Case 1390 Specifications

General Specifications
ModelJ.I. Case 1390
Length3,420 mm (134.6 in)
Width
Height (exhaust)2,230 mm (87.8 in)
Wheel base2,130 mm (83.9 in)
Ground clearance 2WD: 530 mm (20.9 in)
4WD: 330 mm (13 in)
Weight (shipping)2,495 kg (5,501 lbs)
Fuel tank capacity71.9 liters (19 US gal.; 15.8 Imp. gal)
Battery12V
Cabin typeTwo-post ROPS or cab (optional)
Engine
Engine modelJ.I. Case
Engine typeFour-stroke, liquid-cooled, inline
Cylinders4
Fuel typeDiesel
Displacement3.6 L, 3,589 cm2, (219.0 cu·in)
Bore and stroke100.0 mm X 114.0 mm (3.94 in X 4.49 in)
Compression ratio17.0:1
Horsepower60.8 PS (44.7 kW; 60.0 HP) at 2,200 rpm
StarterElectric
Oil capacity:7.5 L (7.9 US. qt, 6.6 Imp. qt.)
Coolant capacity:14.0 L (14.8 US. qt, 12.3 Imp. qt.)
Transmission and chassis
Chassis4×2 2WD or 4×4 MFWD 4WD
Steering typeHydrostatic power
BrakesMechanical drum
Transmission model
Transmission typeSynchromesh with hydraulic dry disc clutch
Gears12 forward and 4 reverse
Speed Forward: 24.1 kmh (15 mph) Reverse: 13.8 (8.6 mph)
Transmission oil capacity27.0 L (7.1 US. gal, 5.9 Imp. gal.)
Tires
Front tires Ag: 7.50-16
Rear tires Ag: 16.9-30
Three-Point Hitch
CategoryII/I
Control type
Lift capacity (at ends)
PTO (Power take-off shaft)
Rear PTO typeIndependent
Rear PTO speed540/1000 rpm
Hydraulic system
Hydraulic typeOpen center
Hydraulic capacity26.9 L (7.1 US. gal, 5.9 Imp. gal.)
Valves1 or 2
Pump flow15.3 gpm (57.9 lpm)
