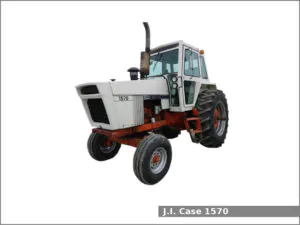

J.I. Case 1570

J.I. Case 1570The J.I. Case 1570 is a 2WD row-crop tractor manufactured by J.I. Case in Racine, Wisconsin, USA from 1976 to 1978. The J.I. Case 1570 is equipped with a 8.3 L (504.0 cu·in) six-cylinder diesel engine and a three-speed power shift transmission with 12 forward and 3 reverse gears and hydraulic wet disc clutch .

The J.I. Case 1570 row-crop tractor used the J.I. Case engine. It is a 8.3 L, 8,259 cm2, (504.0 cu·in) six-cylinder turbocharged diesel engine with 117.0 mm (4.61 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. The compression ratio rating is 15.8:1. This engine produced 182.5 PS (134.2 kW; 180.0 HP) at 2,100 rpm of PTO output power.

The J.I. Case 1570 is equipped with power steering, hydraulic wet disc brakes, cab (standard), and 302.8 liters (80 US gal.; 66.6 Imp. gal) fuel tank.

J.I. Case 1570 Specifications

General Specifications
Model J.I. Case 1570
Length
Width
Height
Wheel base 2,640 mm (103.9 in)
Weight (operating) 7,260 kg (16,006 lbs)
Fuel tank capacity 302.8 liters (80 US gal.; 66.6 Imp. gal)
Battery 12V
Cabin type Cab (standard)
Engine
Engine model J.I. Case
Engine type Four-stroke, liquid-cooled, inline
Cylinders 6
Fuel type Diesel
Displacement 8.3 L, 8,259 cm2, (504.0 cu·in)
Bore and stroke 117.0 mm X 127.0 mm (4.61 in X 5 in)
Compression ratio 15.8:1
Horsepower 182.5 PS (134.2 kW; 180.0 HP) at 2,100 rpm
Starter Electric
Coolant capacity: 41.6 L (44 US. qt, 36.6 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD
Steering type Power
Brakes Hydraulic wet disc
Transmission model
Transmission type Three-speed power shift with hydraulic wet disc clutch
Gears 12 forward and 3 reverse
Tires
Front tires Ag: 11.00-16
Rear tires Ag: 18.4-38
Three-Point Hitch
Category III
Control type
Lift capacity (at ends)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 1,000 rpm
Hydraulic system
Hydraulic type
Valves 2
Pump flow 20.0 gpm (75.7 lpm)
