J.I. Case 530

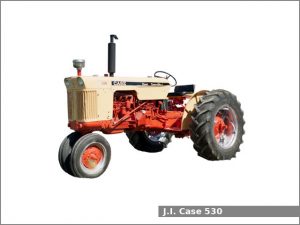

J.I. Case 530The J.I. Case 530 is a 2WD utility tractor from the 530 series. This tractor was also used as the 530CK Construction King loader-backhoe tractor. The 530 tractor was manufactured by J.I. Case in Racine, Wisconsin, USA, and Rock Island, Illinois, USA from 1960 to 1969. The J.I. Case 530 is equipped with a 3.1 L (188.4 cu·in) four-cylinder diesel engine and one of four transmission variants.

The J.I. Case 530 utility tractor used the J.I. Case diesel engine. It is a 3.1 L, 3,087 cm2, (188.4 cu·in) four-cylinder natural aspirated diesel engine with 97.0 mm (3.82 in) of the cylinder bore and 105.0 mm (4.13 in) of the piston stroke. The compression ratio rating is 17.5:1. This engine produced 40.5 PS (29.8 kW; 40.0 HP) of output power.

The J.I. Case 530 is equipped with manual steering, mechanical disc brakes, an open operator station, and 83.3 liters (22 US gal.; 18.3 Imp. gal) fuel tank.

The J.I. Case 530 variants:

  • 530 – diesel standard
  • 531 – diesel row-crop
  • 540 – gas standard
  • 541 – gas row-crop

J.I. Case 530 Specifications

General Specifications
Model J.I. Case 530
Length 3,300 mm (129.9 in)
Width 1,600 mm (63 in)
Height 1,340 mm (52.8 in)
Wheel base 2,070 mm (81.5 in)
Ground clearance 460 mm (18.1 in)
Weight (shipping) 1,820 kg (4,012 lbs)
Fuel tank capacity 83.3 liters (22 US gal.; 18.3 Imp. gal)
Battery
Cabin type Open operator station
Engine
Engine model J.I. Case
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 3.1 L, 3,087 cm2, (188.4 cu·in)
Bore and stroke 97.0 mm X 105.0 mm (3.82 in X 4.13 in)
Compression ratio 17.5:1
Horsepower 40.5 PS (29.8 kW; 40.0 HP)
Starter Electric
Oil capacity: 4.7 L (5 US. qt, 4.1 Imp. qt.)
Coolant capacity: 15.6 L (16.5 US. qt, 13.7 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual
Brakes Mechanical disc
Transmission model Tripl-Range
Transmission type
Gears 12 forward and 3 reverse
Speed Forward: 36.0 kmh (22.4 mph) Reverse: 5.4 kmh (3.4 mph)
Transmission model Case-O-Matic
Transmission type Torque converter with hydraulic disc clutch
Gears 8 forward and 2 reverse
Speed Forward: 23.9 kmh (14.9 mph) Reverse: 6.0 kmh (3.7 mph)
Transmission model
Transmission type Gear type with dry disc clutch
Gears 4 forward and 1 reverse
Speed Forward: 21.6 kmh (13.4 mph) Reverse: 5.3 kmh (3.3 mph)
Transmission model Dual-Range Shuttle
Transmission type Mechanical shuttle with dry disc clutch
Gears 8 forward and 8 reverse
Tires
Front tires Ag: 5.50-16
Ag: 6.00×16, 6.00×14, 7.50×15
Rear tires Ag: 12.4-28
Ag: 12.4×24, 13.6×28, 14.9×28, 14.9×24, 16.9×24
Three-Point Hitch
Category I
Control type Position control
Lift capacity (at ends)
PTO (Power take-off shaft)
Rear PTO type Transmission or independent (optional)
Rear PTO speed 540 rpm
