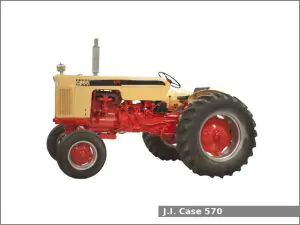

The J.I. Case 570 is a 2WD farm tractor from the series. This tractor was manufactured by J.I. Case in Racine, Wisconsin, USA from 1970 to 1973.
The J.I. Case 570 is equipped with one of two engines: a 2.6 L (158.7 cu·in) four-cylinder gasoline engine or a 3.1 L (188.4 cu·in) four-cylinder diesel engine and one of three transmissions: a gear type transmission with 4 forward and 1 reverse gears, a gear type transmission with 8 forward and 2 reverse gears or a mechanical shuttle transmission with 8 forward and 8 reverse gears.
The tractor could be equipped with the following engines:
- J.I. Case. It is a 2.6 L, 2,600 cm2, (158.7 cu·in) four-cylinder natural aspirated gasoline engine with 89.0 mm (3.5 in) of the cylinder bore and 105.0 mm (4.13 in) of the piston stroke. The compression ratio rating is 7.42:1.
- J.I. Case. It is a 3.1 L, 3,087 cm2, (188.4 cu·in) four-cylinder natural aspirated diesel engine. The cylinder bore is 97.0 mm (3.82 in) and the piston stroke is 105.0 mm (4.13 in). The compression ratio rating is 17.5:1.
The J.I. Case 570 is equipped with hydrostatic power steering, open operator station and 83.3 liters (22 US gal.; 18.3 Imp. gal) fuel tank.
J.I. Case 570 Specifications
| General Specifications | |
| Model | J.I. Case 570 |
| Length | – |
| Width | – |
| Height | – |
| Wheel base | – |
| Weight | 1,770 kg (3,902 lbs) |
| Fuel tank capacity | 83.3 liters (22 US gal.; 18.3 Imp. gal) |
| Battery | – |
| Cabin type | Open operator station |
| Engine | |
| Engine model | J.I. Case |
| Engine type | Four-stroke, liquid-cooled, inline |
| Cylinders | 4 |
| Fuel type | Gasoline |
| Displacement | 2.6 L, 2,600 cm2, (158.7 cu·in) |
| Bore and stroke | 89.0 mm X 105.0 mm (3.5 in X 4.13 in) |
| Compression ratio | 7.42:1 |
| Horsepower | – |
| Starter | Electric |
| Coolant capacity: | 13.2 L (13.9 US. qt, 11.6 Imp. qt.) |
| Engine | |
| Engine model | J.I. Case |
| Engine type | Four-stroke, liquid-cooled, inline |
| Cylinders | 4 |
| Fuel type | Diesel |
| Displacement | 3.1 L, 3,087 cm2, (188.4 cu·in) |
| Bore and stroke | 97.0 mm X 105.0 mm (3.82 in X 4.13 in) |
| Compression ratio | 17.5:1 |
| Horsepower | – |
| Starter | Electric |
| Transmission and chassis | |
| Chassis | 4×2 2WD |
| Steering type | Hydrostatic power |
| Brakes | – |
| Transmission model | – |
| Transmission type | Gear type |
| Gears | 4 forward and 1 reverse |
| Transmission model | – |
| Transmission type | Gear type |
| Gears | 8 forward and 2 reverse |
| Transmission model | – |
| Transmission type | Mechanical shuttle |
| Gears | 8 forward and 8 reverse |
| Tires | |
| Front tires | Ag: |
| Rear tires | Ag: |
| Three-Point Hitch | |
| Category | I |
| Control type | – |
| Lift capacity (at ends) | – |
| PTO (Power take-off shaft) | |
| Rear PTO type | Independent |
| Rear PTO speed | 540 rpm |
| Hydraulic system | |
| Hydraulic type | – |
| Pump flow | 35.2 gpm (133.2 lpm) |
