J.I. Case 930

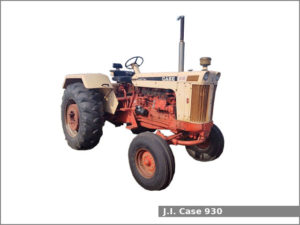

J.I. Case 930The J.I. Case 930 is a 2WD farm tractor from the 30 series. This tractor was manufactured by J.I. Case in Racine, Wisconsin, USA from 1960 to 1969. The 930 Comfort King version was introduced in 1962. The J.I. Case 930 is equipped with a 6.6 L (401.0 cu·in) six-cylinder diesel engine and a gear type transmission with 6 forward and 1 reverse gears.

The J.I. Case 930 farm tractor used the J.I. Case engine. It is a 6.6 L, 6,571 cm2, (401.0 cu·in) six-cylinder natural aspirated diesel engine with 105.0 mm (4.13 in) of the cylinder bore and 127.0 mm (5.0 in) of the piston stroke. The compression ratio rating is 15.2:1. This engine produced 81.7 PS (60.1 kW; 80.6 HP) of tested output power.

The J.I. Case 930 is equipped with power assist steering, differential mechanical dry disc brakes, an open operator station, and 113.6 liters (30 US gal.; 25 Imp. gal) fuel tank.

J.I. Case 930 Specifications

General Specifications
Model J.I. Case 930
Length 3,580 mm (140.9 in)
Width 2,130 mm (83.9 in)
Height (hood) 1,630 mm (64.2 in)
Wheel base 2,130 mm (83.9 in)
Weight (operating) 4,015 kg (8,852 lbs)
Fuel tank capacity 113.6 liters (30 US gal.; 25 Imp. gal)
930CK: 181.7 liters (48 US gal.; 40 Imp. gal)
Battery Two 6V
Cabin type Open operator station
Engine
Engine model J.I. Case
Engine type Four-stroke, liquid-cooled, inline
Cylinders 6
Fuel type Diesel
Displacement 6.6 L, 6,571 cm2, (401.0 cu·in)
Bore and stroke 105.0 mm X 127.0 mm (4.13 in X 5 in)
Compression ratio 15.2:1
Horsepower 81.7 PS (60.1 kW; 80.6 HP) at rpm
Starter Electric
Transmission and chassis
Chassis 4×2 2WD
Steering type Power assist
Brakes Differential mechanical dry disc
Transmission model
Transmission type Gear type
Gears 6 forward and 1 reverse
Speed Forward: 21.9 kmh (13.6 mph) Reverse: 5.0 kmh (3.1 mph)
Tires
Front tires Ag: 7.50-18
Rear tires Ag: 15×34
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 540/1000 rpm
Hydraulic system
Hydraulic type Dual-Control
Valves 1 or 2
Pump flow 15.0 gpm (56.8 lpm)
