J.I. Case 580E

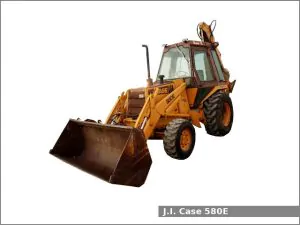

J.I. Case 580EThe J.I. Case 580E is a 2WD or 4WD backhoe-loader tractor manufactured by J.I. Case from 1983. The J.I. Case 580E is equipped with a 3.9 L (239.0 cu·in) four-cylinder diesel engine and a power shuttle transmission with 4 forward and 4 reverse gears.

The J.I. Case 580E backhoe loader tractor used the J.I. Case 4-390 engine. It is a 3.9 L, 3,917 cm2, (239.0 cu·in) four-cylinder natural aspirated diesel engine with 102.0 mm (4.02 in) of the cylinder bore and 120.0 mm (4.72 in) of the piston stroke. The compression ratio rating is 18.5:1. This engine produced 70 PS (51.5 kW; 69.0 HP) at 2,200 rpm of output power and 252.2 N·m (25.7 kg·m, 185.9 ft·lb) at 1,200 rpm of torque.

The J.I. Case 580E is equipped with power steering, hydraulic disc brakes, four-post ROPS or Cab (optional), and 100.3 liters (26.5 US gal.; 22.1 Imp. gal) fuel tank.

Following attachments are available for the J.I. Case 580E backhoe loader tractor:

  • J.I. Case loader
  • J.I. Case backhoe
  • J.I. Case extendahoe backhoe

J.I. Case 580E Specifications

General Specifications
Model J.I. Case 580E
Length 6,880 mm (270.9 in)
Width 2,050 mm (80.7 in)
Height ROPS: 2,610 mm (102.8 in)
Cab: 2,640 mm (103.9 in)
Wheel base 2,080 mm (81.9 in)
Ground clearance 230 mm (9.1 in)
Weight 2WD: 4,835 kg (10,659 lbs)
4WD: 5,116 kg (11,279 lbs)
Fuel tank capacity 100.3 liters (26.5 US gal.; 22.1 Imp. gal)
Battery 12V, CCA 700A, 42Ah
Cabin type Fourd-post ROPS or Cab (optional)
Engine model J.I. Case 4-390
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 3.9 L, 3,917 cm2, (239.0 cu·in)
Bore and stroke 102.0 mm X 120.0 mm (4.02 in X 4.72 in)
Compression ratio 18.5:1
Horsepower 70 PS (51.5 kW; 69.0 HP) at 2,200 rpm
Torque 252.2 N·m (25.7 kg·m, 185.9 ft·lb) at 1,200 rpm
Starter Electric
Oil capacity: 10.4 L (11 US. qt, 9.2 Imp. qt.)
Coolant capacity: 17.9 L (18.9 US. qt, 15.7 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Power
Brakes Hydraulic disc
Transmission model
Transmission type Power shuttle
Gears 4 forward and 4 reverse
Speed Forward: 35.1 kmh (21.8 mph) Reverse: 31.5 kmh (19.6 mph)
Front tires Industrial: 11Lx16 (2WD), 12×16.5 (4WD)
Rear tires Industrial: 17.5Lx24
Hydraulic system
Hydraulic type Open center
Hydraulic capacity 89.9 L (23.7 US. gal, 19.8 Imp. gal.)
Pressure 2000 psi (137.9 bar)
Pump flow 30.0 gpm (113.6 lpm)
Steering flow 7.0 gpm (26.5 lpm)
