JCB Fastrac 155

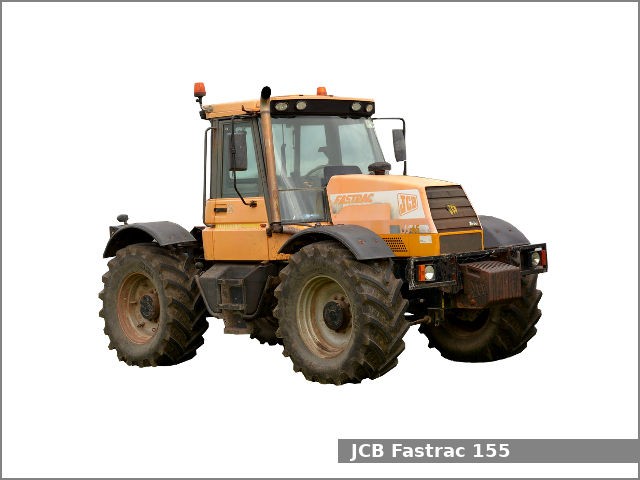

JCB Fastrac 155The JCB Fastrac 155 is a four-wheel drive (4WD) tractor manufactured by JCB from 1993 to 1997. The JCB Fastrac 155 is equipped with a 6.0 L (365.2 cu·in) six-cylinder diesel engine and a synchromesh transmission with 36 forward and 12 reverse gears.

The JCB Fastrac 155 4WD tractor used the Perkins 1000-6 T4 engine. It is a 6.0 L, 5,984 cm2, (365.2 cu·in) six-cylinder turbocharged diesel engine with 100.0 mm (3.94 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. This engine produced 170.4 PS (125.3 kW; 168.0 HP) at 2,400 rpm of output power and 602.0 N·m (61.4 kg·m, 443.7 ft·lb) at 1,400 rpm of torque.

The JCB Fastrac 155 is equipped with power assist steering, pneumatic dry disc brakes, Cab with air conditioning, and 280.0 liters (74 US gal.; 61.6 Imp. gal) fuel tank.

JCB Fastrac 155 Specifications

General Specifications
Model JCB Fastrac 155
Length 5,760 mm (226.8 in)
Width 2,480 mm (97.6 in)
Height 2,890 mm (113.8 in)
Wheel base 3,000 mm (118.1 in)
Ground clearance 480 mm (18.9 in)
Weight 6,520 kg (14,374 lbs)
Fuel tank capacity 280.0 liters (74 US gal.; 61.6 Imp. gal)
Battery Two 12V
Cabin type Cab standard with air conditioning
Engine
Engine model Perkins 1000-6 T4
Engine type Four-stroke, liquid-cooled, inline
Cylinders 6
Fuel type Diesel
Displacement 6.0 L, 5,984 cm2, (365.2 cu·in)
Bore and stroke 100.0 mm X 127.0 mm (3.94 in X 5 in)
Horsepower 170.4 PS (125.3 kW; 168.0 HP) at 2,400 rpm
Torque 602.0 N·m (61.4 kg·m, 443.7 ft·lb) at 1,400 rpm
Starter Electric
Transmission and chassis
Chassis 4×4 4WD
Steering type Power assist
Brakes Pneumatic dry disc
Differential lock Electro-hydraulic rear
Transmission model
Transmission type Synchromesh
Gears 36 forward and 12 reverse
Tires
Front tires Ag: 480/70R30
Rear tires Ag: 480/70R30
Three-Point Hitch
Caterogy III/IIIN
Control type Electronic draft control
Lift capacity (at ends) 6,000 kg (13,230 lbs)
7,000 kg (15,435 lbs)
Front hitch
Caterogy II
Lift capacity 3,000 kg (6,615 lbs)
PTO (Power take-off shaft)
Front PTO type Independent
Front PTO speed 540/1,000, 1,000 rpm
Rear PTO type Independent with electro-hydraulic clutch
Rear PTO speed 540/1,000, 1,000 rpm
Hydraulic system
Hydraulic type
Hydraulic capacity 60.0 L (15.9 US gal, 13.2 Imp. gal)
76.8 L (20.3 US gal, 16.9 Imp. gal)
Pressure 3045 psi (210 bar)
Valves 2
Pump flow 15.85 gpm (60 lpm)
