John Deere 130

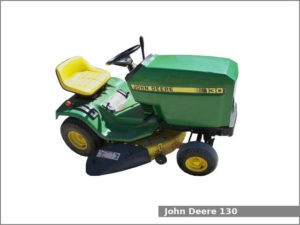

John Deere 130The John Deere 130 is a lawn and garden mower with small single cylinder Kawasaki FC290V vertical engine (286 cc, 17.45 cu-in) and Peerless 801-038A gear transmission (five forward and one reverse). The John Deere 130 lawn mower was produced from 1986 to 1988.

The John Deere 130 tractor used an air-cooled single-cylinder four-stroke Kawasaki FC290V gasoline engine with vertical PTO shaft and electric starter. The FC290V engine has an OHV (overhead valve) design; cast-iron cylinder liner; reciprocating balancer; float type carburetor with fixed main jet; flywheel magneto transistor type ignition system. Bore and stroke are 78.0 mm (3.07 in) and 60.0 mm (2.36 in), respectively. Compression ratio rating is 8.4:1. The Kawasaki FC290V motor produced 9.1 PS (6.7 kW; 9.0 HP) at 3,600 rpm of horsepower and 18.7 Nm (1.91 kg·m; 13.8 ft·lb) at 2,400 rpm of torque.

The John Deere 130 is equipped with gear transmission (4×2 2WD), mechanical clutch, disc brakes, and manual steering.

Following attachments are available for The John Deere 130 garden tractor:

  • John Deere mower deck – mid-mount 760.0 mm (30 in) mower deck with manual lift (Cutting height: 25.40—102 mm (1.00—4.00 in.);
  • John Deere M00269X blade – front-mount 1060.0 mm (42 in) blade with manual lift;
  • John Deere M00246X snow blower – front-mount snow blower with 960.0 mm (38 in) clearing width and manual lift;

John Deere 130 Specifications

General Specifications
Model John Deere 130
Length 1,650 mm (65 in)
Width
Height 990 mm (39.3 in)
Wheel base 1,130 mm (44.7 in)
Dry weight 184 kg (405 lbs)
Fuel tank capacity 8.3 L (2.2 gal)
Battery 12V
Engine
Engine model Kawasaki FC290V
Fuel Gasoline
Displacement 286 cc (17.45 cu-in)
Bore x stroke 78.0 x 60.0 mm (3.07 x 2.36 in)
Power output 9.0 HP (6.7 KW) at 3,600 rpm
Starter type Recoil or electric starter
Oil type 10W30
Oil capacity 1.1 L (1.2 US. qt)
Spark plug NGK: BPR5ES; CHAMPION: RN11YC;
Transmission and chassis
Chassis 4×2 (2WD)
Transmission type Gear transmission (Peerless 801-038A)
Gears 5 forward and 1 reverse
Ground speed Forward: up to 7.9 kmh (4.9 mph)
Reverse: up to 3.7 kmh (2.3 mph)
Transmission oil capacity 1.1 L (2.3 pt)
Wheels and tires
Front tires Lawn/turf: 13×5.00-6
Rear tires Lawn/turf: 18×6.50-8
