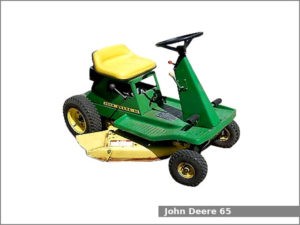

The John Deere 65 is a riding lawn mower with small single-cylinder Tecumseh engine and belt-driven gear transmission with three forward and one reverse gear. The John Deere 65 was manufactured from 1978 to 1983.
This lawnmower used open operator station and mid-mount 28 inches (710 mm) mower deck with the single blade. The John Deere 65 used an air-cooled single-cylinder four-stroke gasoline engine with vertical PTO shaft and recoil starter. This Tecumseh engine produces 5.0 HP (3.7 kW).
The John Deere 65 is equipped with gear transmission (4×2 2WD) and independent mid-PTO shaft with a mechanical clutch.
John Deere 65 Specifications
|Model||John Deere 65|
|Length||1,300 mm (52 in)|
|Width||1,020 mm (40 in)|
|Height||0,970 mm (38 in)|
|Wheel base||1,020 mm (40 in)|
|Dry weight||142 kg (270 lbs)|
|Fuel tank capacity||1.9 L (0.5 US gal)|
|Bore x stroke||–|
|Power output||5.0 HP (3.7 kW)|
|Oil capacity||0.81 L|
|Spark plug||Champion RJ8C|
|Transmission and chassis|
|Transmission type||Belt-driven gear transmission|
|Gears||Three forward and one reverse|
Forward: up to 6.1 kmh (3.8 mph)
Reverse: up to 4.0 kmh (2.5 mph)
|Deck type||Mid-mount mower deck with one blade|
|Deck size||710 mm (28 in.)|
We try to use verified sources and official documentation, however, differences between sources or errors in entering information may occur. In addition, the characteristics may vary depending on the modification and market. We do not provide advice on technical issues related to the any operation or repair. We do not recommend using provided information for repairing or spare parts ordering, use only official service manuals and spare-parts catalogs.
