John Deere 200

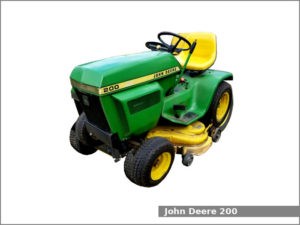

John Deere 200The John Deere 200 is a 2WD lawn and garden tractor from the 200 series. This tractor was manufactured by the John Deere in Horicon, Wisconsin, USA from 1975 to 1976. The John Deere 200 is equipped with a 0.3 L single-cylinder gasoline engine and belt-driven gear transmission with 4 forward and 1 reverse gear.

The John Deere 200 lawn tractor used the Kohler K181QS engine. It is a 0.3 L, 305 cm2, (18.6 cu·in) single-cylinder natural aspirated gasoline engine with 75.0 mm (2.95 in) of the cylinder bore and 70.0 mm (2.76 in) of the piston stroke. This engine produced 8.2 PS (6.0 kW; 8.0 HP) at 3,500 rpm of maximum output power.

The John Deere 200 is equipped with manual steering, open operator station, 13.2 liters (3.5 US gal.; 2.9 Imp. gal) fuel tank and 38 in (960 mm) mower deck with 3-blades and mechanical lift.

John Deere 200 Specifications

General Specifications
Model John Deere 200
Length 1,710 mm (67.3 in)
Width 1,,050 mm (41.3 in)
Height 1060 mm (41.7 in)
Wheel base 1,160 mm (45.7 in)
Weight 313 kg (690 lbs)
Fuel tank capacity 13.2 liters (3.5 US gal.; 2.9 Imp. gal)
Battery 12V, CCA: 135A, Group U1
Cabin type Open operator station
Engine
Engine model Kohler K181QS
Engine type Four-stroke, air-cooled, inline
Cylinders 1
Fuel type Gasoline
Displacement 0.3 L, 305 cm2, (18.6 cu·in)
Bore and stroke 75.0 mm X 70.0 mm (2.95 in X 2.76 in)
Horsepower 8.2 PS (6.0 kW; 8.0 HP) at 3,500 rpm
Starter Electric
Oil type SAE 5W-20, 30
Oil capacity: 1.2 L (1.3 US. qt, 1.1 Imp. qt.)
Spark plug Champion J-8 or XJ8
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual
Brakes –
Transmission model Peerless 2300
Transmission type Belt-driven gear
Gears 4 forward and 1 reverse
Speed Forward: 11.3 kmh (7 mph) Reverse: 6.0 (3.7 mph)
Transmission oil capacity 1.7 L (0.4 US. gal, 0.4 Imp. gal.)
Tires
Front tires Lawn/turf: 16×6.50-8
Rear tires Lawn/turf: 23×8.50-12
