John Deere 2010C

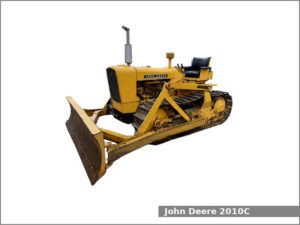

John Deere 2010CThe John Deere 2010C is a 2WD crawler / dozer manufactured by John Deere in Dubuque, Iowa, USA from 1960 to 1965.

The John Deere 2010C is equipped with one of two engines: a 2.4 L (144.5 cu·in) four-cylinder gasoline / LP-gas engine or a 2.7 L (165.1 cu·in) four-cylinder diesel engine and a transmission with 8 forward and 4 reverse gears.

The JD 2010C used multiple discs clutches steering, contracting band brakes, and open operator station.

The tractor could be equipped with the following engines:

  • John Deere. It is a 2.4 L, 2,368 cm2, (144.5 cu·in) four-cylinder natural aspirated gasoline / LP-gas engine with 92.0 mm (3.62 in) of the cylinder bore and 89.0 mm (3.5 in) of the piston stroke. The compression ratio rating is 7.9:1. This engine produced 48.1 PS (35.4 kW; 47.5 HP) at 2,500 rpm of PTO output power.
  • John Deere. It is a 2.7 L, 2,705 cm2, (165.1 cu·in) four-cylinder natural aspirated diesel engine. The cylinder bore is 98.0 mm (3.86 in) and the piston stroke is 89.0 mm (3.5 in). The compression ratio rating is 19.0:1. This engine produced 48.1 PS (35.4 kW; 47.5 HP) at 2,500 rpm PTO of output power.

John Deere 2010C Specifications

General Specifications
Model John Deere 2010C
Length
Width
Height
Wheel base
Weight Gasoline: 4,330 kg (9,545 lbs)
Diesel: 4,375 kg (9,645 lbs)
Fuel tank capacity
Battery 12V
Cabin type Open operator station
Engine
Engine model John Deere
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Gasoline / LP-gas
Displacement 2.4 L, 2,368 cm2, (144.5 cu·in)
Bore and stroke 92.0 mm X 89.0 mm (3.62 in X 3.5 in)
Compression ratio 7.9:1
Horsepower 48.1 PS (35.4 kW; 47.5 HP) at 2,500 rpm
Starter Electric
Engine
Engine model John Deere
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 2.7 L, 2,705 cm2, (165.1 cu·in)
Bore and stroke 98.0 mm X 89.0 mm (3.86 in X 3.5 in)
Compression ratio 19.0:1
Horsepower 48.1 PS (35.4 kW; 47.5 HP) at 2,500 rpm
Starter Electric
Transmission and chassis
Chassis Crawler
Steering type Multiple disc clutches
Brakes Contracting band
Transmission model
Transmission type
Gears 8 forward and 4 reverse
Speed Forward: 10.8 kmh (6.7 mph) Reverse: 10.3 (6.4 mph)
Tracks
Front Tracks
Rear Tracks
PTO (Power take-off shaft)
Rear PTO type
Rear PTO speed 540/1,000 rpm
