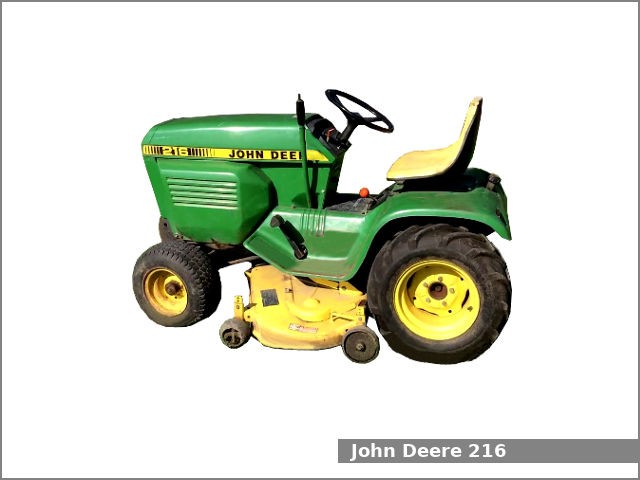

John Deere 216

John Deere 216The John Deere 216 is a 2WD garden tractor from the 200 series. This tractor was manufactured by the John Deere in Horicon, Wisconsin, USA from 1979 to 1987. The JD 216 is equipped with a 0.6 L single-cylinder gasoline engine and gear transmission with 4 forward and 1 reverse gear.

The John Deere 216 garden tractor used the Kohler K341AQS engine. It is a 0.6 L, 588 cm2, (35.9 cu·in) single-cylinder natural aspirated gasoline engine with 95.3 mm (3.75 in) of the cylinder bore and 82.6 mm (3.25 in) of the piston stroke. This engine produced 16.2 PS (11.9 kW; 16.0 HP) at 3,500 rpm of maximum output power.

The John Deere 216 is equipped with manual steering, band brakes, open operator station and 13.2 liters (3.5 US gal.; 2.9 Imp. gal) fuel tank.

Following attachments are available for the John Deere 216 garden tractor:

  • Mid-mount John Deere 39 38 in (960 mm) mower deck with 3-blades and mechanical lift
  • Mid-mount John Deere 47 H047 46 in (1,160 mm) mower deck with 3-blades and mechanical lift
  • Mid-mount John Deere 46 M00673X 46 in (1,160 mm) mower deck with 3-blades and mechanical lift

John Deere 216 Specifications

General Specifications
Model John Deere 216
Length 1,710 mm (67.3 in)
Width 1,050 mm (41.3 in)
Height 1,060 mm (41.7 in)
Wheel base 1,160 mm (45.7 in)
Weight 299 kg (659 lbs)
Fuel tank capacity 13.2 liters (3.5 US gal.; 2.9 Imp. gal)
Battery 12V
Cabin type Open operator station
Engine
Engine model Kohler K341AQS
Engine type Four-stroke, air-cooled, inline
Cylinders 1
Fuel type Gasoline
Displacement 0.6 L, 588 cm2, (35.9 cu·in)
Bore and stroke 95.3 mm X 82.6 mm (3.75 in X 3.25 in)
Horsepower 16.2 PS (11.9 kW; 16.0 HP) at 3,500 rpm
Starter Electric
Oil type API SF or SG
Oil capacity: 1.4 L (1.5 US. qt, 1.2 Imp. qt.)
Spark plug Champion RH10
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual
Brakes Band
Transmission model Peerless 2300
Transmission type Gear with CVT
Gears 4 forward and 1 reverse
Speed Forward: 11.3 kmh (7 mph) Reverse: 6.0 (3.7 mph)
Transmission oil capacity 1.7 L (0.4 US. gal, 0.4 Imp. gal.)
Tires
Front tires Lawn/turf: 16×6.50-8
Rear tires Lawn/turf: 23×10.50-12
