John Deere 2305

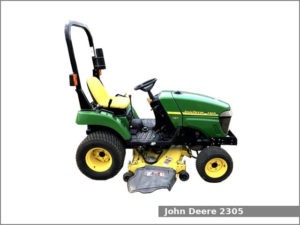

John Deere 2305The John Deere 2305 is a 4WD sub-compact utility tractor from the 2000 Twenty series. This tractor was manufactured by John Deere in Augusta, Georgia, USA from 2006 to 2011. The JD 2305 is equipped with 1.1 L three-cylinder diesel engine and hydrostatic transmission with infinite (2-range) forward and reverse gears.

The John Deere 2305 utility tractor used the Yanmar 3TNV76 engine. It is a 1.1 L, 1,116 cm2, (68 cu·in) three-cylinder natural aspirated diesel engine with 76.0 mm (2.99 in) of the cylinder bore and 82.0 mm (3.23 in) of the piston stroke. The compression ratio rating is 23.4:1. This engine produced 24.5 PS (18.0 kW; 24.0 HP) at 3,000 rpm of maximum horsepower and 56.5 N·m (5.8 kg·m, 41.6 ft·lb) at 3,000 rpm of torque. The Yanmar 3TNV76 motor has an indirect injection fuel system with an inline ML fuel injection pump; pressurized lubrication system with the trochoid oil pump, oil pressure switch and paper element oil filter and dual dry element air cleaner.

The John Deere 2305 is equipped with hydrostatic power steering, wet disc brakes, open operator station with two-post ROPS (rollover protection structure) and 21.0 liters (5.5 US gal.; 4.6 Imp. gal) fuel tank.

Following attachments are available for JD 2305 sub-compact utility tractor:

  • John Deere 54C: 54 in (1,370 mm) mower deck with 3-blades
  • John Deere 62C: 62 in (1,570 mm) mower deck with 3-blades
  • John Deere 200CX loader

John Deere 2305 Specifications

General Specifications
Model John Deere 2305
Length 2,605 mm (102.6 in)
Width 1,140 mm (44.9 in)
Height 1,970 mm (77.6 in)
Wheel base 1,450 mm (57.1 in)
Weight 846 kg (1,865 lbs)
Fuel tank capacity 21.0 liters (5.5 US gal.; 4.6 Imp. gal)
Battery 12V CCA: 500A
Cabin type Open operator station with two-post ROPS
Engine
Engine model Yanmar 3TNV76
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 1.1 L, 1,116 cm2, (68 cu·in)
Bore and stroke 76.0 mm X 82.0 mm (2.99 in X 3.23 in)
Compression ratio 23.4:1
Horsepower 24.5 PS (18.0 kW; 24.0 HP) at 3,000 rpm
Torque 56.5 N·m (5.8 kg·m, 41.6 ft·lb) at 3,000 rpm
Starter Electric
Oil capacity: 3.2 L (3.38 US. qt, 2.82 Imp. qt.)
Coolant capacity: 3.2 L (3.38 US. qt, 2.82 Imp. qt.)
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Hydrostatic power
Brakes Wet disc
Final drive Spur gear
Transmission model
Transmission type Hydrostatic
Gears Infinite (2-range) forward and reverse
Speed Forward: 13.4 kmh (8.3 mph) Reverse: 6.6 (4.1 mph)
Transmission oil capacity 12.9 L (13.63 US. qt, 11.35 Imp. qt.)
Tires
Front tires Lawn/turf/ind: 18×8.5-10
Rear tires Lawn/turf/ind: 26×12.00-12
Three-Point Hitch
Caterogy I Limited
Control type
Lift capacity 650 kg (1,433 lbs)
PTO (Power take-off shaft)
Middle PTO type Independent
Middle PTO spped 2,100 rpm
Rear PTO type Independent
Rear PTO spped 540 rpm
Hydraulic system
Hydraulic type Open center
Hydraulic capacity 12.9 L (13.63 US. qt, 11.35 Imp. qt.)
Pressure 1990 psi (137.2 bar)
Valves 2
Pump flow 2.9 gpm (11 lpm)
Total flow 5.2 gpm (19.7 lpm)
Steering flow 2.3 gpm (8.7 lpm)
