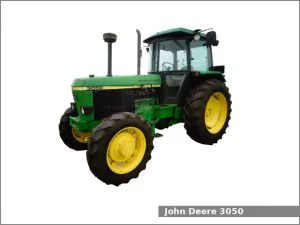

John Deere 3050

John Deere 3050The John Deere 3050 is a 2WD or 4WD utility tractor from the 3050 series. This tractor was manufactured by John Deere in Mannheim, Baden-Württemberg, Germany from 1986 to 1993. The John Deere 3050 is equipped with a 5.9 L (358.9 cu·in) six-cylinder diesel engine and a two-speed power shift transmission with 16 forward and 8 reverse gears.

The John Deere 3050 utility tractor used the John Deere 6359 DL008 engine. It is a 5.9 L, 5,882 cm2, (359.0 cu·in) six-cylinder natural aspirated diesel engine with 107.0 mm (4.21 in) of the cylinder bore and 110.0 mm (4.33 in) of the piston stroke. The compression ratio rating is 17.4:1. This engine produced 91.9 PS (67.6 kW; 90.7 HP) at 2,300 rpm of output power and 340.1 N·m (34.7 kg·m, 250.7 ft·lb) at 1,400 rpm of torque.

The JD 3050 is equipped with power steering, hydraulic wet disc brakes, SG2 Cab (standard), and 121.1 liters (32 US gal.; 26.6 Imp. gal) fuel tank.

John Deere 3050 Specifications

General Specifications
ModelJohn Deere 3050
Length4,670 mm (183.9 in)
Width2,160 mm (85 in)
Height2,880 mm (113.4 in)
Wheel base 2WD: 2,550 mm (100.4 in)
4WD: 2,580 mm (101.6 in)
Ground clearance 2WD: 680 mm (26.8 in)
4WD: 500 mm (19.7 in)
Weight 2WD: 4,150 kg (9,149 lbs)
4WD: 4,860 kg (10,714 lbs)
Fuel tank capacity Standard: 121.1 liters (32.0 US gal.; 26.6 Imp. gal)
Optional: 173.0 liters (45.7 US gal.; 38.1 Imp. gal)
BatteryTwo 12V, 88Ah
Cabin typeSG2 Cab (standard) with optional air-conditioning.
Engine modelJohn Deere 6359 DL008
Engine typeFour-stroke, liquid-cooled, inline
Fuel typeDiesel
Displacement5.9 L, 5,882 cm2, (359.0 cu·in)
Bore and stroke107.0 mm X 110.0 mm (4.21 in X 4.33 in)
Compression ratio17.4:1
Horsepower91.9 PS (67.6 kW; 90.7 HP) at 2,300 rpm
Torque340.1 N·m (34.7 kg·m, 250.7 ft·lb) at 1,400 rpm
Oil capacity:11.5 L (12.2 US. qt, 10.1 Imp. qt.)
Coolant capacity:19.0 L (20.1 US. qt, 16.7 Imp. qt.)
Transmission and chassis
Chassis4×2 2WD or 4×4 MFWD 4WD
Steering typePower
BrakesHydraulic wet disc
Final drivePlanetary
Differential lockMechanical rear
Transmission modelHi-Lo
Transmission typeTwo-speed power shift with hydraulic cerametallic disc clutch
Gears16 forward and 8 reverse
Speed Forward: 28.9 kmh (18 mph) Reverse: 12.5 kmh (7.8 mph)
Front tires Ag: 11.00×16 (2WD), 13.6×28 (4WD)
Rear tires Ag: 18.4×38
Three-Point Hitch
Control typePosition and draft control
Lift capacity (at ends) 2WD: 4,075 kg (8,900 lbs)
4WD: 4,890 kg (10,800 lbs)
Front HitchII
Front lift1,630 kg (3,595 lbs)
PTO (Power take-off shaft)
Front PTO typeIndependent with hydraulic wet disc clutch
Front PTO speed1000 rpm
Rear PTO typeIndependent with hydraulic wet disc clutch
Rear PTO speed540/1000 rpm
Hydraulic system
Hydraulic typeClosed-center constant pressure
Hydraulic capacity 2WD: 49.0 L (12.9 US. gal, 10.8 Imp. gal.)
4WD: 52.0 L (13.7 US. gal, 11.4 Imp. gal.)
Pressure2698 psi (186 bar)
Total flow11.62 gpm (44 lpm)
