John Deere 310D

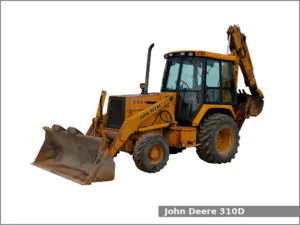

John Deere 310DThe John Deere 310D is a 2WD or 4WD backhoe loader tractor manufactured by John Deere from 1991 to 1997.

The John Deere 310D is equipped with one of two engines: a 3.9 L (239.0 cu·in) four-cylinder naturally aspirated diesel engine or a 3.9 L (239.0 cu·in) four-cylinder turbocharged diesel engine and a transmission with 4 forward and 4 reverse gears.

The tractor could be equipped with the following engines:

  • John Deere 4039D. It is a 3.9 L, 3,916 cm2, (239.0 cu·in) four-cylinder natural aspirated diesel engine with 106.0 mm (4.17 in) of the cylinder bore and 110.0 mm (4.33 in) of the piston stroke. This engine produced 70.7 PS (52.0 kW; 69.7 HP) at 2,200 rpm of output power.
  • John Deere. It is a 3.9 L, 3,916 cm2, (239.0 cu·in) four-cylinder turbocharged diesel engine. The cylinder bore is 106.0 mm (4.17 in) and the piston stroke is 110.0 mm (4.33 in). This engine produced 76 PS (55.9 kW; 75 HP) at 2,200 rpm of output power.

The JD 310D is equipped with hydrostatic power steering, differential hydraulic wet disc brakes, cab (optional), and 128.7 liters (34 US gal.; 28.3 Imp. gal) fuel tank.

John Deere 310D Specifications

General Specifications
Model John Deere 310D
Length 6,850 mm (269.7 in)
Width 2,130 mm (83.9 in)
Height 3,650 mm (143.7 in)
Wheel base
Weight 6,170 kg (13,603 lbs)
Fuel tank capacity 128.7 liters (34 US gal.; 28.3 Imp. gal)
Battery 12V
Cabin type Cab (optional)
Engine
Engine model John Deere 4039D
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 3.9 L, 3,916 cm2, (239.0 cu·in)
Bore and stroke 106.0 mm X 110.0 mm (4.17 in X 4.33 in)
Horsepower 70.7 PS (52.0 kW; 69.7 HP) at 2,200 rpm
Torque 260.4 N·m (26.6 kg·m, 191.9 ft·lb) at 1,200 rpm
Starter Electric
Oil capacity: 8.5 L (9 US. qt, 7.5 Imp. qt.)
Coolant capacity: 16.1 L (17 US. qt, 14.2 Imp. qt.)
Engine
Engine model John Deere
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 3.9 L, 3,916 cm2, (239.0 cu·in)
Bore and stroke 106.0 mm X 110.0 mm (4.17 in X 4.33 in)
Horsepower 76 PS (55.9 kW; 75 HP) at 2,200 rpm
Torque 260.4 N·m (26.6 kg·m, 191.9 ft·lb) at 1,200 rpm
Starter Electric
Oil capacity: 8.5 L (9 US. qt, 7.5 Imp. qt.)
Coolant capacity: 16.1 L (17 US. qt, 14.2 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Hydrostatic power
Brakes Differential hydraulic wet disc
Transmission model
Transmission type
Gears 4 forward and 4 reverse
Speed Forward: 33.5 kmh (20.8 mph) Reverse: 30.2 (18.8 mph)
Tires
Front tires Ag: 7.50×16, 8.00Lx16, 11Lx15, 11Lx16, 12Lx16.5, 14×17.5
Rear tires Ag: 16.9Lx24, 17.5Lx24, 19.5Lx24, 21Lx24
Hydraulic system
Hydraulic type Open center
Hydraulic capacity 79.5 liters (21 US gal, 17.5 Imp. gal)
Pressure 2700 psi (186.2 bar)
Steering flow 6.4 gpm (24.2 lpm)
Total flow 38.0 gpm (143.8 lpm)
