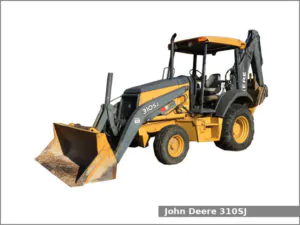

The John Deere 310SJ is a 2WD or 4WD backhoe loader tractor manufactured by John Deere from 2007 to 2017. The John Deere 310SJ is equipped with a 4.5 L (276.0 cu·in) four-cylinder diesel engine and a full powershift transmission with 4 forward and 3 reverse gears.
The John Deere 310SJ backhoe loader tractor used the John Deere 4045T engine. It is a 4.5 L, 4,523 cm2, (276.0 cu·in) four-cylinder turbocharged diesel engine with 106.0 mm (4.17 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. This engine produced 94.4 PS (69.4 kW; 93.0 HP) at 2,000 rpm of output power.
The JD 310SJ is equipped with hydrostatic power steering, hydraulic wet disc brakes, four-post ROPS/FOPS or cab, and 155.2 liters (41 US gal.; 34.1 Imp. gal) fuel tank.
John Deere 310SJ Specifications
| General Specifications | |
| Model | John Deere 310SJ |
| Length | 7,160 mm (281.9 in) |
| Width | 2,180 mm (85.8 in) |
| Height | 2,790 mm (109.8 in) |
| Wheel base | 2,100 mm (82.7 in) |
| Ground clearance | 330 mm (13 in) |
| Weight |
2WD with ROPS: 6,580 kg (14,505 lbs) 4WD with Cab: 7,730 kg (17,040 lbs) |
| Fuel tank capacity | 155.2 liters (41 US gal.; 34.1 Imp. gal) |
| Battery | One or two 12V, CCA: 950A |
| Cabin type | ROPS or Cab |
| Engine | |
| Engine model | John Deere 4045T |
| Engine type | Four-stroke, liquid-cooled, inline |
| Cylinders | 4 |
| Fuel type | Diesel |
| Displacement | 4.5 L, 4,523 cm2, (276.0 cu·in) |
| Bore and stroke | 106.0 mm X 127.0 mm (4.17 in X 5 in) |
| Horsepower | 94.4 PS (69.4 kW; 93.0 HP) at 2,000 rpm |
| Torque | 390.5 N·m (39.8 kg·m, 287.8 ft·lb) at 1,300 rpm |
| Starter | Electric |
| Oil capacity: | 13.2 L (13.9 US. qt, 11.6 Imp. qt.) |
| Coolant capacity: | 24.6 L (26 US. qt, 21.6 Imp. qt.) |
| Transmission and chassis | |
| Chassis | 4×2 2WD or 4×4 MFWD 4WD |
| Steering type | Hydrostatic power |
| Brakes | Hydraulic wet disc |
| Differential lock | Hydraulic locking front and rear |
| Transmission model | PowerShift |
| Transmission type | Full powershift |
| Gears | 4 forward and 3 reverse |
| Speed | Forward: 36.0 kmh (22.4 mph) Reverse: 21.1 (13.1 mph) |
| Transmission oil capacity | 15.1 L (4 US. gal, 3.3 Imp. gal.) |
| Tires | |
| Front tires | Industrial: 11L-16 (2WD), 12.5/80-18 (4WD) |
| Rear tires | Industrial: 19.5L-24 |
| Hydraulic system | |
| Hydraulic type | Open center |
| Hydraulic capacity | 90.8 L (95.95 US. qt, 79.89 Imp. qt.) |
| Pressure | 3625 psi (249.9 bar) |
| Total flow |
Loader: 28.0 gpm (106.0 lpm) Backhoe: 36.0 gpm (136.3 lpm) |
