John Deere 3150

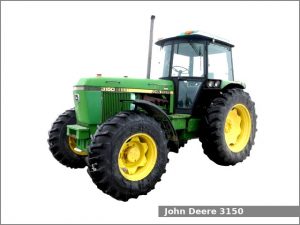

John Deere 3150The John Deere 3150 is a 4WD utility tractor manufactured by John Deere in Mannheim, Baden-Württemberg, Germany from 1985 to 1987. The John Deere 3150 is equipped with a 5.9 L (359.0 cu·in) six-cylinder diesel engine and a two-speed power shift transmission with 16 forward and 8 reverse gears.

The JD 3150 utility tractor used the John Deere engine. It is a 5.9 L, 5,883 cm2, (359.0 cu·in) six-cylinder natural aspirated diesel engine with 106.0 mm (4.17 in) of the cylinder bore and 110.0 mm (4.33 in) of the piston stroke. The compression ratio rating is 17.8:1. This engine produced 96.3 PS (70.8 kW; 95.0 HP) at 2,400 rpm of PTO output power.

The John Deere 3150 is equipped with power steering, hydraulic wet disc brakes, ROPS or Cab (optional) and 134.0 liters (35.4 US gal.; 29.5 Imp. gal) fuel tank.

John Deere 3150 Specifications

General Specifications
Model John Deere 3150
Wheel base 2,580 mm (101.6 in)
Weight (operating) 5,338 kg (11,768 lbs)
Fuel tank capacity 134.0 liters (35.4 US gal.; 29.5 Imp. gal)
Battery 12V, CCA 610A
Cabin type ROPS or Cab (optional)
Engine model John Deere
Engine type Four-stroke, liquid-cooled, inline
Cylinders 6
Fuel type Diesel
Displacement 5.9 L, 5,883 cm2, (359.0 cu·in)
Bore and stroke 106.0 mm X 110.0 mm (4.17 in X 4.33 in)
Compression ratio 17.8:1
Horsepower 96.3 PS (70.8 kW; 95.0 HP) at 2,400 rpm
Starter Electric
Coolant capacity: 17.0 L (18 US. qt, 15 Imp. qt.)
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Power
Brakes Hydraulic wet disc
Transmission model Top Shaft Synchronized (TSS) Hi-Lo
Transmission type Two-speed power shift
Gears 16 forward and 8 reverse
Speed Forward: 30.6 kmh (19.0 mph) Reverse: 13.7 kmh (8.5 mph)
Front tires Ag: 13.6-28
Rear tires Ag: 18.4-38
Three-Point Hitch
Category II
Control type
Lift capacity 2857 kg (6300 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 540/1000 rpm
Hydraulic system
Hydraulic type Closed center
Hydraulic capacity 46.9 L (12.4 US. gal, 10.3 Imp. gal.)
Valves 2
Pump flow 22.0 gpm (83.3 lpm)
