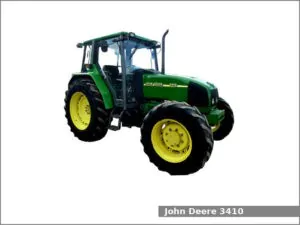

John Deere 3410

John Deere 3410The John Deere 3410 is a 4WD utility tractor manufactured by Renault for John Deere in Le Mans, France from 1998 to 2002. The John Deere 3410 is equipped with a 4.5 L (276.0 cu-in) four-cylinder diesel engine and one of two transmissions: a synchronized transmission with 20 forward and 20 reverse gears or a power shift transmission with 20 forward and 20 reverse gears.

The John Deere 3410 utility tractor used the John Deere diesel engine. It is a 4.5 L, 4,523 cm2, (276.0 cu·in) four-cylinder turbocharged diesel engine with 106.0 mm (4.17 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. This engine produced 86.2 PS (63.4 kW; 85.0 HP) of maximum output power.

The John Deere 3410 is equipped with hydrostatic power steering, wet disc brakes, cab with heat and 115.0 liters (30.4 US gal.; 25.3 Imp. gal) fuel tank.

John Deere 3410 Specifications

General Specifications
Model John Deere 3410
Length 4,060 mm (159.8 in)
Width
Height 2,540 mm (100 in)
Wheel base 2,400 mm (94.5 in)
Weight 3,470 kg (7,650 lbs)
Fuel tank capacity 115.0 liters (30.4 US gal.; 25.3 Imp. gal)
Battery 12V
Cabin type Cab with heat
Engine
Engine model John Deere
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 4.5 L, 4,523 cm2, (276.0 cu·in)
Bore and stroke 106.0 mm X 127.0 mm (4.17 in X 5 in)
Horsepower 86.2 PS (63.4 kW; 85.0 HP)
Starter Electric
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Hydrostatic power
Brakes Wet disc
Transmission model
Transmission type Synchronized
Gears 20 forward and 20 reverse
Transmission model Twinshift
Transmission type Power shift
Gears 20 forward and 20 reverse
Tires
Front tires Ag: 13.6R24
Rear tires Ag: 16.9R34
Three-Point Hitch
Caterogy II
Control type Position and draft control
Lift capacity (at ends) 5,110 kg (11,270 lbs)
PTO (Power take-off shaft)
Rear PTO type
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type
Pump flow 13.7 gpm (51.9 lpm)
