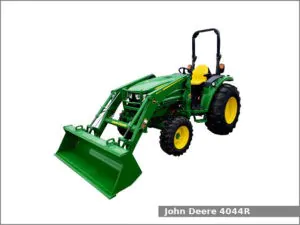

John Deere 4044R

John Deere 4044RThe John Deere 4044R is a 4WD compact utility tractor from the 4M series. This tractor has been manufactured by John Deere in Augusta, Georgia, USA since 2014. The John Deere 4044R is equipped with a 2.2 L four-cylinder diesel engine and one of two transmissions: power shuttle transmission with wet disc clutch and 12 forward and 12 reverse gears or hydrostatic transmission with infinite forward and reverse gears.

The John Deere 4044R compact utility tractor used the Yanmar 4TNV88 engine. It is a 2.2 L, 2,189 cm2, (133.6 cu·in) four-cylinder natural aspirated diesel engine with 88.0 mm (3.46 in) of the cylinder bore and 90.0 mm (3.54 in) of the piston stroke. This engine produced 43.7 PS (32.1 kW; 43 HP) at 2,600 rpm of maximum output power.

The John Deere 4044R is equipped with power steering, hydraulic wet disc brakes, two-post folding ROPS or Cab with air-conditioning (optional) and 49.2 liters (13 US gal.; 10.8 Imp. gal) fuel tank for ROPS version or 52.0 liters (13.7 US gal, 11.4 Imp. gal) for Cab version.

Following attachments are available for the John Deere 4044R compact utility tractor:

  • John Deere D170 loader
  • John Deere H180 loader
  • John Deere 440R loader
  • John Deere 485A backhoe

John Deere 4044R Specifications

General Specifications
Model John Deere 4044R
Length 3,310 mm (130.3 in)
Width
Height ROPS: 2,540 mm (100.0 in)
Cab: 2,470 mm (97.4 in)
Wheel base 1,850 mm (72.8 in)
Weight 1,710 kg (3769.9 lbs)
Fuel tank capacity ROPS: 49.2 liters (13.0 US gal.; 10.8 Imp. gal)
Cab: 52.0 liters (13.7 US gal, 11.4 Imp. gal)
Battery 12V, CCA 770A
Cabin type Two-post folding ROPS or Cab with air-conditioning (optional)
Engine
Engine model Yanmar 4TNV88
Engine type Four-stroke, liquid-cooled, turbo
Cylinders 4
Fuel type Diesel
Displacement 2.2 L, 2189 cm2, (133.6 cu·in)
Bore and stroke 88.0 mm X 90.0 mm (3.46 in X 3.54 in)
Horsepower 43.7 PS (32.1 kW; 43 HP) at 2,600 rpm
Starter Electric
Oil capacity: 5.4 L (5.7 US. qt, 4.8 Imp. qt.)
Coolant capacity: 6.0 L (6.3 US. qt, 5.3 Imp. qt.)
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Power
Brakes Hydraulic wet disc
Final drive Planetary
Differential lock Mechanical rear
Transmission model PowrReverser
Transmission type Power shuttle with wet disc clutch
Gears 12 forward and 12 reverse
Speed Forward: 29.9 kmh (18.6 mph) Reverse: – (0 mph)
Transmission model eHydro
Transmission type Hydrostatic
Gears Infinite forward and reverse
Speed Forward: 32.8 kmh (20.4 mph) Reverse: – (0 mph)
Tires
Front tires Ag: 8.00-16
Lawn/turf: 27×10.50-15
Rear tires Ag: 13.6-28
Lawn/turf: 44×18-20
Three-Point Hitch
Caterogy I
Control type Position control
Lift capacity (at ends) 1,420 kg (3,130 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO spped 540 rpm
Hydraulic system
Hydraulic type Open center
Hydraulic capacity 47.3 L (49.98 US. qt, 41.62 Imp. qt.)
Pressure 2,500 psi (172 bar)
