John Deere 4052M

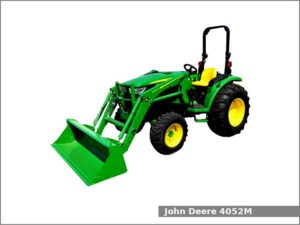

John Deere 4052MThe John Deere 4052M is a 4WD compact utility tractor from the 4M series. This tractor has been manufactured by John Deere in Augusta, Georgia, USA since 2014. The JD 4052M is equipped with a 2.1 L (127.5 cu·in) four-cylinder diesel engine and one of two transmissions: a power shuttle transmission with wet disc clutch and 12 forward and 12 reverse gears or a hydrostatic transmission with infinite forward and reverse gears.

The John Deere 4052M compact utility tractor used the Yanmar 4TNV86 engine. It is a 2.1 L, 2,089 cm2, (127.5 cu·in) four-cylinder turbocharged diesel engine with 86.0 mm (3.39 in) of the cylinder bore and 90.0 mm (3.54 in) of the piston stroke. This engine produced 52.2 PS (38.4 kW; 51.5 HP) at 2,600 rpm of output power.

The John Deere 4052M is equipped with power steering, hydraulic wet disc brakes, Two-post folding ROPS, and 49.2 liters (13 US gal.; 10.8 Imp. gal) fuel tank.

Following attachments are available for the JD 4052M compact utility tractor:

  • John Deere D170 loader
  • John Deere H180 loader
  • John Deere 400E loader
  • John Deere 485A backhoe

John Deere 4052M Specifications

General Specifications
ModelJohn Deere 4052M
Length3,310 mm (130.3 in)
Width
Height2,540 mm (100 in)
Wheel base1,850 mm (72.8 in)
Ground clearance350 mm (13.8 in)
Weight1,710 kg (3,770 lbs)
Fuel tank capacity49.2 liters (13 US gal.; 10.8 Imp. gal)
Battery12V, CCA 770A
Cabin typeTwo-post folding ROPS
Engine
Engine modelYanmar 4TNV86
Engine typeFour-stroke, liquid-cooled, inline
Cylinders4
Fuel typeDiesel
Displacement2.1 L, 2,089 cm2, (127.5 cu·in)
Bore and stroke86.0 mm X 90.0 mm (3.39 in X 3.54 in)
Horsepower52.2 PS (38.4 kW; 51.5 HP) at 2,600 rpm
StarterElectric
Transmission and chassis
Chassis4×4 MFWD 4WD
Steering typePower
BrakesHydraulic wet disc
Final drivePlanetary
Differential lockMechanical rear
Transmission modelPowrReverser
Transmission typePower shuttle with wet disc clutch
Gears12 forward and 12 reverse
Speed Forward: 29.9 kmh (18.6 mph)
Transmission modeleHydro
Transmission typeHydrostatic
GearsInfinite forward and reverse
Speed Forward: 29.9 kmh (18.6 mph)
Tires
Front tiresAg: 8.00-16
Rear tiresAg: 13.6-28
Three-Point Hitch
CaterogyI
Control typePosition control
Lift capacity (at ends)1,420 kg (3,130 lbs)
PTO (Power take-off shaft)
Rear PTO typeIndependent
Rear PTO speed540 rpm
Hydraulic system
Hydraulic typeOpen center
Pressure2500 psi (172.4 bar)
Pump flow10.2 gpm (38.6 lpm)
Steering flow5.7 gpm (21.6 lpm)
Total flow15.9 gpm (60.2 lpm)
