John Deere 4066M

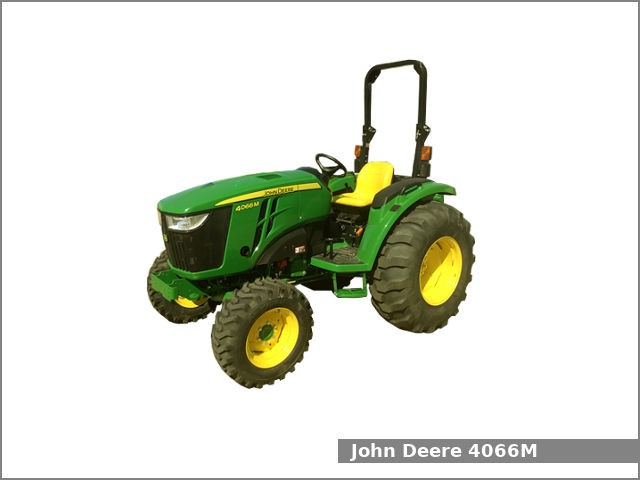

John Deere 4066MThe John Deere 4066M is a 4WD compact utility tractor from the 4M series. This tractor has been manufactured by John Deere in Augusta, Georgia, USA since 2014. The John Deere 4066M is equipped with a 2.1 L four-cylinder diesel engine and one of two transmissions: power shuttle transmission with wet disc clutch and 12 forward and 12 reverse gears or hydrostatic transmission with infinite forward and reverse gears.

The John Deere 4066M compact utility tractor used the Yanmar 4TNV86CHT engine. It is a 2.1 L, 2,089 cm2, (127.5 cu·in) four-cylinder turbocharged diesel engine with 86.0 mm (3.39 in) of the cylinder bore and 90.0 mm (3.54 in) of the piston stroke. This engine produced 66.8 PS (49.1 kW; 65.8 HP) at 2,600 rpm of maximum output power.

The John Deere 4066M is equipped with power steering, hydraulic wet disc brakes, two-post folding ROPS and 49.2 liters (13 US gal.; 10.8 Imp. gal) fuel tank.

Following attachments are available for the John Deere 4066M compact utility tractor:

  • John Deere D170 loader
  • John Deere H180 loader
  • John Deere 400E loader
  • John Deere 485A backhoe

John Deere 4066M Specifications

General Specifications
Model John Deere 4066M
Length 3,310 mm (130.3 in)
Width
Height 2,540 mm (100.0 in)
Wheel base 1,850 mm (72.8 in)
Weight 1,710 kg (3770 lbs)
Fuel tank capacity 49.2 liters (13 US gal.; 10.8 Imp. gal)
Battery 12V, CCA 770A
Cabin type Two-post folding ROPS
Engine
Engine model Yanmar 4TNV86CHT
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 2.1 L, 2,089 cm2, (127.5 cu·in)
Bore and stroke 86.0 mm X 90.0 mm (3.39 in X 3.54 in)
Compression ratio 19.1:1
Horsepower 66.8 PS (49.1 kW; 65.8 HP) at 2,600 rpm
Starter Electric
Oil capacity: 5.4 L (5.7 US. qt, 4.8 Imp. qt.)
Coolant capacity: 6.0 L (6.3 US. qt, 5.3 Imp. qt.)
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Power
Brakes Hydraulic wet disc
Final drive Planetary
Transmission model PowrReverser
Transmission type Power shuttle with wet disc clutch
Gears 12 forward and 12 reverse
Speed Forward: 29.9 kmh (18.6 mph) Reverse: – (0 mph)
Transmission model eHydro
Transmission type Hydrostatic
Gears Infinite forward and reverse
Speed Forward: 29.9 kmh (18.6 mph) Reverse: – (0 mph)
Tires
Front tires Ag: 8.00-16
Lawn/turf: 27×10.50-15
Rear tires Ag: 13.6-28
Lawn/turf: 44×18-20
Three-Point Hitch
Caterogy I
Control type Position control
Lift capacity (at ends) 1,420 kg (3,130 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO spped 540 rpm
Hydraulic system
Hydraulic type Open center
Hydraulic capacity 47.3 L (49.98 US. qt, 41.62 Imp. qt.)
Pressure 2500 psi (172.4 bar)
Pump flow 10.2 gpm (38.6 lpm)
Steering flow 5.7 gpm (21.6 lpm)
Total flow 15.9 gpm (60.2 lpm)
