John Deere 410

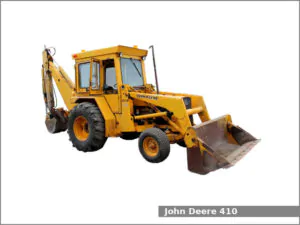

John Deere 410The John Deere 410 is a 2WD or 4WD backhoe loader tractor manufactured by John Deere in Dubuque, Iowa, USA from 1971 to 1983. The John Deere 410 is equipped with a 3.6 L (219.0 cu·in) four-cylinder diesel engine and a power shuttle with wet disc clutch transmission with 8 forward and 8 reverse gears.

The JD 410 backhoe loader tractor used the John Deere engine. It is a 3.6 L, 3,589 cm2, (219.0 cu·in) four-cylinder natural aspirated diesel engine with 102.0 mm (4.02 in) of the cylinder bore and 110.0 mm (4.33 in) of the piston stroke. This engine produced 66.9 PS (49.2 kW; 66 HP) at 2,500 rpm of output power and 217.0 N·m (22.1 kg·m, 159.9 ft·lb) at 1,300 rpm of torque.

The John Deere 410 is equipped with power steering, hydraulic wet disc brakes, four-post ROPS or Cab with available heater, and 73.8 liters (19.5 US gal.; 16.2 Imp. gal) fuel tank.

Following attachments are available for the JD 410 backhoe loader tractor:

  • John Deere loader
  • John Deere backhoe

John Deere 410 Specifications

General Specifications
ModelJohn Deere 410
Length7,250 mm (285.4 in)
Width2,130 mm (83.9 in)
Height2,590 mm (102 in)
Wheel base2,080 mm (81.9 in)
Weight6,445 kg (14,209 lbs)
Fuel tank capacity73.8 liters (19.5 US gal.; 16.2 Imp. gal)
BatteryTwo 6V, 340Ah
Cabin typeFour-post ROPS or Cab with available heater
Engine modelJohn Deere
Engine typeFour-stroke, liquid-cooled, inline
Fuel typeDiesel
Displacement3.6 L, 3,589 cm2, (219.0 cu·in)
Bore and stroke102.0 mm X 110.0 mm (4.02 in X 4.33 in)
Horsepower66.9 PS (49.2 kW; 66 HP) at 2,500 rpm
Torque217.0 N·m (22.1 kg·m, 159.9 ft·lb) at 1,300 rpm
Oil capacity:8.5 L (9 US. qt, 7.5 Imp. qt.)
Coolant capacity:12.3 L (13 US. qt, 10.8 Imp. qt.)
Transmission and chassis
Chassis4×2 2WD or 4×4 MFWD 4WD
Steering typePower
BrakesHydraulic wet disc
Final driveInboard planetary
Transmission model
Transmission typePower shuttle with wet disc clutch
Gears8 forward and 8 reverse
Speed Forward: 26.4 kmh (16.4 mph) Reverse: 30.1 (18.7 mph)
Transmission oil capacity37.9 L (10 US. gal, 8.3 Imp. gal.)
Front tiresIndustrial: 11L-16, 7.50-16, 8.00-16
Rear tiresIndustrial: 16.9-24, 18.4-24, 19.5L-24, 21L-24
Hydraulic system
Hydraulic typeClosed center
Hydraulic capacity77.6 L (82 US. qt, 68.28 Imp. qt.)
Pressure2350 psi (162 bar)
Pump flow38.0 gpm (143.8 lpm)
