John Deere 430

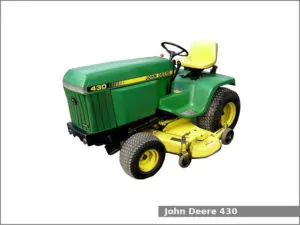

John Deere 430The John Deere 430 is a 2WD lawn and garden tractor from the 400 series. This tractor was manufactured by the John Deere in Horicon, Wisconsin, USA from 1984 to 1992. The John Deere 430 is equipped with a 0.9 L three-cylinder diesel engine and shaft-driven hydrostatic transmission with infinite (2-range) forward and reverse gears.

The JD 430 garden tractor used the Yanmar 3TNA72UJ engine. It is a 0.9 L, 885 cm2, (54.0 cu·in) three-cylinder natural aspirated diesel engine with 72.0 mm (2.83 in) of the cylinder bore and 72.0 mm (2.83 in) of the piston stroke. This engine produced 20.3 PS (14.9 kW; 20.0 HP) at 3,350 rpm of maximum output power.

The John Deere 430 is equipped with power steering, differential mechanical drum brakes, open operator station and 24.6 liters (6.5 US gal.; 5.4 Imp. gal) fuel tank.

Following attachments are available for the John Deere 430 garden tractor:

  • Mid-mount John Deere 50 in (1,270 mm) mower deck with 3-blades and hydraulic lift
  • Mid-mount John Deere 60 in (1,520 mm) mower deck with 3-blades and hydraulic lift
  • Front-mount John Deere 0042M 54 in (1,370 mm) blade
  • Front-mount John Deere 0062M 46 in (1,160 mm) two-stage snow blower with hydraulic lift
  • Front-mount John Deere 47 2752M 47 in (1,190 mm) dual-stage snow blower with hydraulic lift
  • Front-mount John Deere 44 loader

John Deere 430 Specifications

General Specifications
Model John Deere 430
Length 2,130 mm (83.9 in)
Width 1,300 mm (51.2 in)
Height 1,230 mm (48.4 in)
Wheel base 1,320 mm (52 in)
Weight 530 kg (1,168 lbs)
Fuel tank capacity 24.6 liters (6.5 US gal.; 5.4 Imp. gal)
Battery 12V
Cabin type Open operator station
Engine
Engine model Yanmar 3TNA72UJ
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 0.9 L, 885 cm2, (54.0 cu·in)
Bore and stroke 72.0 mm X 72.0 mm (2.83 in X 2.83 in)
Horsepower 20.3 PS (14.9 kW; 20.0 HP) at 3,350 rpm
Starter Electric
Oil capacity: 3.4 L (3.6 US. qt, 3 Imp. qt.)
Coolant capacity: 3.8 L (4 US. qt, 3.3 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD
Steering type Power
Brakes Differential mechanical drum
Differential lock Rear standard
Transmission model Sundstrand 90
Transmission type Shaft-driven hydrostatic
Gears Infinite (2-range) forward and reverse
Speed Forward: 16.0 kmh (9.9 mph) Reverse: 6.4 (4 mph)
Transmission oil capacity 7.1 L (1.9 US. gal, 1.6 Imp. gal.)
Tires
Front tires Lawn/turf: 18×8.50-8
Rear tires Lawn/turf: 26×12.00-12
Three-Point Hitch
Caterogy 0
Control type
Lift capacity (at ends) 290 kg (639 lbs)
PTO (Power take-off shaft)
Front PTO type Independent with electric clutch
Front PTO spped 3,400 rpm
Rear PTO type Independent with electric clutch
Rear PTO spped 2,000 rpm
Hydraulic system
Hydraulic type
Hydraulic capacity 7.1 L (7.5 US. qt, 6.25 Imp. qt.)
Valves 3
