John Deere 4610

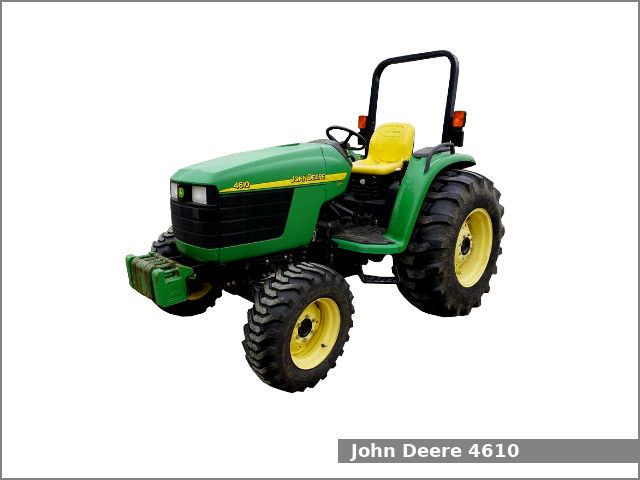

John Deere 4610The John Deere 4610 is a 2WD or 4WD compact utility tractor from the 4000 Ten Compact series. This tractor was manufactured by the John Deere in Augusta, Georgia, USA from 2003 to 2004. The John Deere 4610 is equipped with a 2.0 L four-cylinder diesel engine and one of three transmissions: partially synchronized transmission with 9 forward and 3 reverse gears, hydrostatic transmission with infinite forward and reverse gears or power shuttle transmission with 12 forward and 12 reverse gears.

The JD 4610 compact utility tractor used the Yanmar 4TNE84 engine. It is a 2.0 L, 1,995 cm2, (121.7 cu·in) four-cylinder natural aspirated diesel engine with 84.0 mm (3.31 in) of the cylinder bore and 90.0 mm (3.54 in) of the piston stroke. The compression ratio rating is 18.0:1. This engine produced 43.4 PS (31.9 kW; 42.8 HP) at 2,600 rpm of horsepower and 128.8 N·m (13.1 kg·m, 94.9 ft·lb) at 1,700 rpm of torque.

The John Deere 4610 is equipped with power steering, wet disc brakes, a platform with ROPS and 47.5 liters (12.5 US gal.; 10.4 Imp. gal) fuel tank.

Following attachments are available for the John Deere 4610 compact utility tractor:

  • Mid-mount John Deere 72 in (1,820 mm) mower deck with 3-blades
  • John Deere 460 loader

John Deere 4610 Specifications

General Specifications
Model John Deere 4610
Length 3,420 mm (134.6 in)
Width 1,570 mm (61.8 in)
Height 2,320 mm (91.3 in)
Wheel base 1,810 mm (71.3 in)
Weight 1,565 kg (3,450 lbs)
Fuel tank capacity 47.5 liters (12.5 US gal.; 10.4 Imp. gal)
Battery 12V, CCA 690A
Cabin type Platform with ROPS
Engine
Engine model Yanmar 4TNE84
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 2.0 L, 1,995 cm2, (121.7 cu·in)
Bore and stroke 84.0 mm X 90.0 mm (3.31 in X 3.54 in)
Compression ratio 18.0:1
Horsepower 43.4 PS (31.9 kW; 42.8 HP) at 2,600 rpm
Torque 128.8 N·m (13.1 kg·m, 94.9 ft·lb) at 1,700 rpm
Starter Electric
Oil capacity: 4.8 L (5.1 US. qt, 4.2 Imp. qt.)
Coolant capacity: 6.4 L (6.8 US. qt, 5.6 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Power
Brakes Wet disc
Final drive
Transmission model SyncShift
Transmission type Partially synchronized
Gears 9 forward and 3 reverse
Speed Forward: 25.3 kmh (15.7 mph) Reverse: 15.4 (9.6 mph)
Transmission oil capacity 36.9 L (9.7 US. gal, 8.1 Imp. gal.)
Transmission model eHydro
Transmission type Hydrostatic
Gears Infinite forward and reverse
Speed Forward: 27.0 kmh (16.8 mph) Reverse: 27.0 (16.8 mph)
Transmission oil capacity 35.0 L (9.2 US. gal, 7.7 Imp. gal.)
Transmission model PowrReverser
Transmission type Power shuttle
Gears 12 forward and 12 reverse
Speed Forward: 27.7 kmh (17.2 mph) Reverse: – (0 mph)
Transmission oil capacity 36.9 L (9.7 US. gal, 8.1 Imp. gal.)
Tires
Front tires Ag: 6.00-16 (2WD), 8.00-16 (4WD)
Rear tires Ag: 13.6-24, 14.9-24, 13.6-28
Three-Point Hitch
Caterogy I
Control type
Lift capacity (at ends) 1,130 kg (2,490 lbs)
PTO (Power take-off shaft)
Middle PTO type Optional
Middle PTO spped 2,100 rpm
Rear PTO type Independent
Rear PTO spped 540 rpm
Hydraulic system
Hydraulic type Open center
Pressure 2,500 psi (172 bar)
Pump flow 10.6 gpm (40.1 lpm)
Steering flow 5.3 gpm (20.1 lpm)
Total flow 15.9 gpm (60.2 lpm)
