John Deere 5115M (2012-2014)

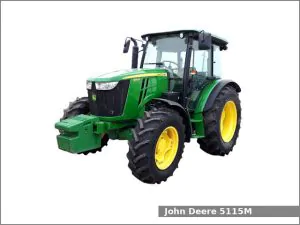

John Deere 5115MThe John Deere 5115M is a 4WD utility tractor from the 5M series. This tractor was manufactured by John Deere from 2012 to 2022. This first generation was manufactured from 2012 to 2014. The John Deere 5115M is equipped with a 4.5 L (276.0 cu·in) four-cylinder diesel engine and one of two transmissions: a partially synchronized transmission with 16 forward and 16 reverse gears or a partially synchronized transmission with 32 forward and 16 reverse gears.

The John Deere 5115M utility tractor used the John Deere engine. It is a 4.5 L, 4,523 cm2, (276.0 cu·in) four-cylinder turbocharged diesel engine with 106.0 mm (4.17 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. This engine produced 116.7 PS (85.8 kW; 115.0 HP) at 2,200 rpm of output power.

The JD 5115M is equipped with hydrostatic power steering, hydraulic wet disc brakes, two-post foldable ROPS, isolated platform, cab or deluxe cab (optional) and 151.4 liters (40 US gal.; 33.3 Imp. gal) fuel tank for ROPS version or 174.1 liters (46 US gal, 38.3 Imp. gal) for the cab version.

Following attachments are available for the John Deere 5115M utility tractor:

  • John Deere H260 loader
  • John Deere H310 loader

John Deere 5115M Specifications

General Specifications
ModelJohn Deere 5115M
Wheel base2,300 mm (90.6 in)
Weight ROPS: 3,585 kg (7,900 lbs)
IROPS: 3,765 kg (8,300 lbs)
Cab: 4,085 kg (9,000 lbs)
Fuel tank capacity ROPS: 151.4 liters (40.0 US gal.; 33.3 Imp. gal)
Cab: 74.1 liters (46.0 US gal, 38.3 Imp. gal)
Cabin type Two-post foldable ROPS
Isolated platform
Cab or deluxe cab (optional)
Engine modelJohn Deere
Engine typeFour-stroke, liquid-cooled, inline
Fuel typeDiesel
Displacement4.5 L, 4,523 cm2, (276.0 cu·in)
Bore and stroke106.0 mm X 127.0 mm (4.17 in X 5 in)
Horsepower116.7 PS (85.8 kW; 115.0 HP) at 2,200 rpm
Transmission and chassis
Chassis4×4 MFWD 4WD
Steering typeHydrostatic power
BrakesHydraulic wet disc
Transmission modelPowrReverser
Transmission typePartially synchronized with wet disc clutch
Gears16 forward and 16 reverse
Transmission modelPowrReverser Plus
Transmission typePartially synchronized with wet disc clutch
Gears32 forward and 16 reverse
Front tires Ag: 12.4R24
Rear tires Ag: 18.4R30
Three-Point Hitch
Control typePosition control and lower-link draft sensing
Lift capacity (at 610 mm/24 in) 2,175 kg (4,795 lbs)
Optional: 2,692 kg (5,935 lbs)
PTO (Power take-off shaft)
Rear PTO typeIndependent with electro-hydraulic clutch
Rear PTO speed540/540E rpm
Hydraulic system
Hydraulic typeOpen center
Pressure2828 psi (195 bar)
Valves Rear: 2 ro 3
Mid: 2 or 3
Pump flow18.4 gpm (69.7 lpm)
Steering flow6.3 gpm (23.8 lpm)
Total flow24.7 gpm (93.5 lpm)
