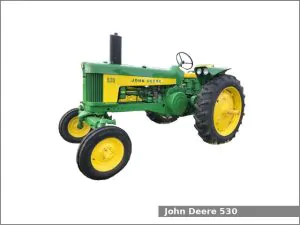

John Deere 530

John Deere 530The John Deere 530 is a 2WD row-crop tractor from the Two-Cylinder 30 series. This tractor was manufactured by John Deere in Waterloo, Iowa, USA from 1958 to 1960. The John Deere 530 is equipped with a 3.1 L (190.0 cu·in) two-cylinder engine (this engine has three modifications for gasoline, LP-gas and all-fuel) and a unsynchronized gear with dry disc clutch transmission with 6 forward and 1 reverse gears.

The John Deere 530 row-crop tractor used the John Deere engine. It is a 3.1 L, 3,114 cm2, (190.0 cu·in) two-cylinder natural aspirated engine with 119.0 mm (4.69 in) of the cylinder bore and 140.0 mm (5.51 in) of the piston stroke.

The JD 530 is equipped with differential mechanical expanding shoe brakes, an open operator station, and 58.7 liters (15.5 US gal.; 12.9 Imp. gal) fuel tank for an all-fuel version, 68.1 liters (18.0 US gal, 15.0 Imp. gal) for gasoline version and 125.0 liters (33.0 US gal, 27.5 Imp. gal) for LP-gas version.

John Deere 530 Specifications

General Specifications
ModelJohn Deere 530
Length3,370 mm (132.7 in)
Width2,200 mm (86.6 in)
Height2,110 mm (83.1 in)
Wheel base2,280 mm (89.8 in)
Weight2,250 kg (4,960 lbs)
Fuel tank capacity All-fuel: 58.7 liters (15.5 US gal.; 13.0 Imp. gal)
Gasoline: 68.1 liters (18.0 US gal.; 15.0 Imp. gal)
LP-gas: 125.0 liters (33.0 US gal, 27.5 Imp. gal)
BatteryTwo 6V
Cabin typeOpen operator station
Engine modelJohn Deere
Engine typeFour-stroke, liquid-cooled, inline
Fuel typeGasoline
Displacement3.1 L, 3,114 cm2, (190.0 cu·in)
Bore and stroke119.0 mm X 140.0 mm (4.69 in X 5.51 in)
Coolant capacity:24.6 L (26 US. qt, 21.6 Imp. qt.)
Transmission and chassis
Chassis4×2 2WD
Steering type
BrakesDifferential mechanical expanding shoe
Transmission modelJohn Deere
Transmission typeUnsynchronized gear with dry disc clutch
Gears6 forward and 1 reverse
Speed Forward: 16.1 kmh (10 mph) Reverse: 4.0 kmh (2.5 mph)
Front tires Ag: 5.50-16
Rear tires Ag: 12.4-36
Three-Point Hitch
CategoryII (optional)
Control type
Lift capacity (at ends)
PTO (Power take-off shaft)
Rear PTO typeIndependent
Rear PTO speed540 rpm
ATTENTION! Dear visitors, this site is not a trading platform, an official dealer or a spare parts supplier, so we do not have any price lists, spare parts catalogs, service or owner manuals. We are an information portal and provide the technical specifications.

We try to use verified sources and official documentation, however, differences between sources or errors in entering information may occur. In addition, the characteristics may vary depending on the modification and market. We do not provide advice on technical issues related to the any operation or repair. We do not recommend using provided information for repairing or spare parts ordering, use only official service manuals and spare-parts catalogs.
