John Deere 6100D

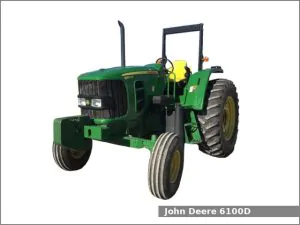

John Deere 6100DThe John Deere 6100D is a 2WD/4WD utility tractor from the 6D series. This tractor was manufactured by John Deere in Saltillo, Mexico from 2008 to 2012. The John Deere 6100D is equipped with a 4.5 L (276.0 cu·in) four-cylinder diesel engine and one of two transmissions: a partially synchronized with power shuttle transmission with 9 forward and 9 reverse gears or a partially synchronzied transmission with 9 forward and 3 reverse gears.

The JD 6100D utility tractor used the John Deere 4045T PowerTech engine. It is a 4.5 L, 4,523 cm2, (276.0 cu·in) four-cylinder turbocharged diesel engine with 107.0 mm (4.21 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. The compression ratio rating is 17.0:1. This engine produced 100.2 PS (73.7 kW; 98.8 HP) at 2,100 rpm of output power and 371.5 N·m (37.9 kg·m, 273.8 ft·lb) at 1,400 rpm of torque.

The John Deere 6100D is equipped with hydrostatic power steering, differential mechanical wet disc brakes, folding 2-post ROPS or cab with heat and A/C and 157.8 liters (41.7 US gal.; 34.7 Imp. gal) fuel tank.

Following attachments are available for the John Deere 6100D utility tractor:

  • John Deere 563 loader
  • John Deere 673 loader

John Deere 6100D Specifications

General Specifications
Model John Deere 6100D
Length 2WD: 4,270 mm (168.1 in)
4WD: 4,210 mm (165.7 in)
Width 1,820 mm (71.7 in)
Height (cab) 2,730 mm (107.5 in)
Wheel base 2,340 mm (92.1 in)
Ground clearance (front axle) 2WD: 590 mm (23.2 in)
4WD: 450 mm (17.7 in)
Weight (shipping) 2WD ROPS: 3,300 kg (7,275 lbs)
2WD Cab: 3,600 kg (7,937 lbs)
4WD ROPS: 3,860 kg (8,510 lbs)
4WD Cab: 4,160 kg (9,170 lbs)
Fuel tank capacity 157.8 liters (41.7 US gal.; 34.7 Imp. gal)
Battery Two 12V, CCA 925A, Group 31
Cabin type Folding 2-post ROPS or cab with heat and A/C
Engine
Engine model John Deere 4045T PowerTech
Engine type Four-stroke, air-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 4.5 L, 4,523 cm2, (276.0 cu·in)
Bore and stroke 107.0 mm X 127.0 mm (4.21 in X 5 in)
Compression ratio 17.0:1
Horsepower 100.2 PS (73.7 kW; 98.8 HP) at 2,100 rpm
Torque 371.5 N·m (37.9 kg·m, 273.8 ft·lb) at 1,400 rpm
Starter Electric
Oil capacity: 15.0 L (15.9 US. qt, 13.2 Imp. qt.)
Coolant capacity: 16.5 L (17.4 US. qt, 14.5 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD (optional)
Steering type Hydrostatic power
Brakes Differential mechanical wet disc
Transmission model John Deere PowrReverser
Transmission type Partially synchronized with power shuttle
Gears 9 forward and 9 reverse
Speed Forward: 28.3 kmh (17.6 mph) Reverse: 29.3 kmh (18.2 mph)
Transmission oil capacity 57.9 L (15.3 US. gal, 12.7 Imp. gal.)
Transmission model John Deere Top Shaft Syncronized (TSS)
Transmission type Partially synchronzied
Gears 9 forward and 3 reverse
Speed Forward: 28.3 kmh (17.6 mph) Reverse: 26.5 kmh (16.5 mph)
Transmission oil capacity 57.9 L (15.3 US. gal, 12.7 Imp. gal.)
Tires
Front tires Ag: 10.00-16 (2WD), 13.6-24 (4WD)
Rear tires Ag: 18.4-34
Three-Point Hitch
Category II
Control type Mechanical lower link
Lift capacity (at at 610 mm/24 in) 3,085 kg (6,800 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent with dry disc clutch
Rear PTO speed 540/1000 (1.375) rpm
Hydraulic system
Hydraulic type Open center
Hydraulic capacity 57.9 L (15.3 US. gal, 12.7 Imp. gal.)
Pressure 2830 psi (195.0 bar)
Valves 2 to 3
Pump flow 17.6 gpm (66.6 lpm)
Steering flow 6.9 gpm (26.1 lpm)
