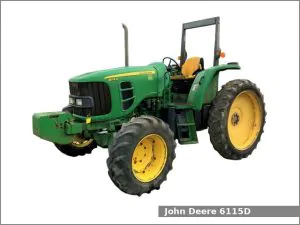

The John Deere 6115D is a 2WD/4WD utility tractor from the 6D series. This tractor was manufactured by John Deere in Saltillo, Mexico from 2008 to 2016. This first generation was manufactured from 2008 to 2012. The John Deere 6115D is equipped with a 4.5 L (275.9 cu·in) four-cylinder diesel engine and one of two transmissions: a partially synchronized with power shuttle transmission with 9 forward and 9 reverse gears or a partially synchronzied transmission with 9 forward and 3 reverse gears.
The John Deere 6115D utility tractor used the John Deere 4045H PowerTech E engine. It is a 4.5 L, 4,522 cm2, (275.9 cu·in) four-cylinder turbocharged intercooled diesel engine with 107.0 mm (4.21 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. The compression ratio rating is 19.0:1. This engine produced 120.1 PS (88.3 kW; 118.4 HP) at 2,100 rpm of output power.
The John Deere 6115D is equipped with hydrostatic power steering, independent mechanical wet disc brakes, folding 2-post ROPS or cab with heat and A/C and 157.8 liters (41.7 US gal.; 34.7 Imp. gal) fuel tank.
John Deere 6115D Specifications
| General Specifications | |
| Model | John Deere 6115D |
| Length | 2WD: 4,270 mm (168.1 in) 4WD: 4,210 mm (165.7 in) |
| Width | 1,820 mm (71.7 in) |
| Height (cab) | 2,730 mm (107.5 in) |
| Wheel base | 2,340 mm (92.1 in) |
| Ground clearance (front axle) | 2WD: 590 mm (23.2 in) 4WD: 450 mm (17.7 in) |
| Weight | 2WD ROPS: 3,400 kg (7,496 lbs) 2WD Cab: 3,700 kg (8,157 lbs) 4WD ROPS: 3,960 kg (8,730 lbs) 4WD Cab: 4,260 kg (9,390 lbs) |
| Fuel tank capacity | 157.8 liters (41.7 US gal.; 34.7 Imp. gal) |
| Battery | 12V, CCA 925A, Group 31 |
| Cabin type | Folding 2-post ROPS or cab with heat and A/C |
| Engine | |
| Engine model | John Deere 4045H PowerTech E |
| Engine type | Four-stroke, liquid-cooled, inline |
| Cylinders | 4 |
| Fuel type | Diesel |
| Displacement | 4.5 L, 4,522 cm2, (275.9 cu·in) |
| Bore and stroke | 107.0 mm X 127.0 mm (4.21 in X 5 in) |
| Compression ratio | 19.0:1 |
| Horsepower | 120.1 PS (88.3 kW; 118.4 HP) at 2,100 rpm |
| Torque | 481.4 N·m (49.1 kg·m, 354.8 ft·lb) at 1,500 rpm |
| Starter | Electric |
| Oil type | SAE 10W-30, 10W-40 |
| Oil capacity: | 15.0 L (15.9 US. qt, 13.2 Imp. qt.) |
| Coolant capacity: | 16.5 L (17.4 US. qt, 14.5 Imp. qt.) |
| Transmission and chassis | |
| Chassis | 4×2 2WD or 4×4 MFWD 4WD |
| Steering type | Hydrostatic power |
| Brakes | Independent mechanical wet disc |
| Transmission model | John Deere PowrReverser |
| Transmission type | Partially synchronized with power shuttle |
| Gears | 9 forward and 9 reverse |
| Speed | Forward: 28.3 kmh (17.6 mph) Reverse: 29.3 kmh (18.2 mph) |
| Transmission oil capacity | 57.9 L (15.3 US. gal, 12.7 Imp. gal.) |
| Transmission model | John Deere Top Shaft Syncronized (TSS) |
| Transmission type | Partially synchronzied |
| Gears | 9 forward and 3 reverse |
| Speed | Forward: 28.3 kmh (17.6 mph) Reverse: 26.5 kmh (16.5 mph) |
| Transmission oil capacity | 57.9 L (15.3 US. gal, 12.7 Imp. gal.) |
| Tires | |
| Front tires | Ag: 10.00-16 (2WD), 13.6-24 (4WD) |
| Rear tires | Ag: 18.4-34 |
| Three-Point Hitch | |
| Category | II |
| Control type | Mechanical lower link |
| Lift capacity (at 610 mm/24 in) | 3084 kg (6800 lbs) |
| PTO (Power take-off shaft) | |
| Rear PTO type | Independent with dry disc clutch |
| Rear PTO speed | 540/1000 rpm |
| Hydraulic system | |
| Hydraulic type | Open center |
| Hydraulic capacity | 57.9 L (15.3 US. gal, 12.7 Imp. gal.) |
| Pressure | 2830 psi (195.1 bar) |
| Valves | 2 to 3 |
| Pump flow | 17.6 gpm (66.6 lpm) |
| Steering flow | 6.9 gpm (26.1 lpm) |
