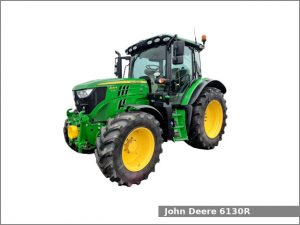

John Deere 6130R

John Deere 6130RThe John Deere 6130R is a 4WD utility tractor from the 6R series. This tractor was manufactured by John Deere in Mannheim, Baden-Württemberg, Germany from 2012 to 2016. The JD 6130R is equipped with a 4.5 L (276.0 cu·in) four-cylinder diesel engine and one of three transmissions: a partial power shift transmission with 24 forward and 24 reverse gears, a partial power shift transmission with 24 forward and 24 reverse gears or a infinitely variable transmission transmission with infinite forward and reverse gears.

The John Deere 6130R utility tractor used the John Deere engine. It is a 4.5 L, 4,523 cm2, (276.0 cu·in) four-cylinder turbocharged intercooled diesel engine with 105.0 mm (4.13 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. This engine produced 131.8 PS (96.9 kW; 130.0 HP) at 2,100 rpm of output power.

The JD 6130R is equipped with hydrostatic power steering, hydraulic or pneumatic (optional) trailer brakes, ComfortView cab (standard) and 330.0 liters (87.2 US gal.; 72.6 Imp. gal) fuel tank.

Following attachments are available for the John Deere 6130R utility tractor:

  • John Deere H340 loader
  • John Deere H360 loader

John Deere 6130R Specifications

General Specifications
ModelJohn Deere 6130R
Length4,930 mm (194.1 in)
Width2,550 mm (100.4 in)
Height2,940 mm (115.7 in)
Wheel base2,760 mm (108.7 in)
Ground clearance530 mm (20.9 in)
Weight5,640 kg (12,434 lbs)
Fuel tank capacity330.0 liters (87.2 US gal.; 72.6 Imp. gal)
Cabin typeComfortView cab (standard)
Engine modelJohn Deere
Engine typeFour-stroke, liquid-cooled, inline
Fuel typeDiesel
Displacement4.5 L, 4,523 cm2, (276.0 cu·in)
Bore and stroke105.0 mm X 127.0 mm (4.13 in X 5 in)
Horsepower131.8 PS (96.9 kW; 130.0 HP) at 2,100 rpm
Torque609.1 N·m (62.1 kg·m, 448.9 ft·lb) at 1,600 rpm
Coolant capacity:27.0 L (28.5 US. qt, 23.8 Imp. qt.)
Transmission and chassis
Chassis4×4 MFWD 4WD
Steering typeHydrostatic power
Trailer brakesHydraulic or pneumatic optional
Differential lock Electro-hydraulic rear with wet disc clutch
Self-locking front
Transmission modelPowrQuad Plus
Transmission typePartial power shift
Gears24 forward and 24 reverse
Transmission modelAutoQuad Plus
Transmission typePartial power shift
Gears24 forward and 24 reverse
Transmission modelAutoPowr IVT
Transmission typeInfinitely variable transmission
GearsInfinite forward and reverse
Front tires Ag: –
Rear tires Ag: –
Three-Point Hitch
Control typeLoad and depth control with electronic lower link sensing
Lift capacity (at ends)4,900 kg (10,805 lbs)
PTO (Power take-off shaft)
Front PTO typeIndependent
Front PTO speed1000 rpm
Rear PTO typeIndependent with electro-hydraulic clutch
Rear PTO speed540/540E/1000 rpm
Hydraulic system
Hydraulic typePressure flow compensated (PFC)
Valves Rear: 4
Front: 2 (optional)
Pump flow 21.1 gpm (79.9 lpm)
Optional: 32.1 gpm (121.5 lpm)
