John Deere 6140D (2013-2016)

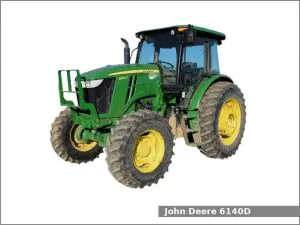

John Deere 6140DThe John Deere 6140D is a 4WD utility tractor from the 6D series. This tractor was manufactured by John Deere in Saltillo, Mexico from 2008 to 2016. This second generation was manufactured from 2013 to 2016. The John Deere 6140D is equipped with a 4.5 L (276.0 cu·in) four-cylinder diesel engine and one of three transmissions: a partially synchronized transmission with 9 forward and 9 reverse gears, a partially synchronized transmission with 12 forward and 12 reverse gears or a partially synchronized transmission with 24 forward and 12 reverse gears.

The JD 6140D utility tractor used the John Deere PowerTech PVX engine. It is a 4.5 L, 4,523 cm2, (276.0 cu·in) four-cylinder variable geometry turbocharged intercooled diesel engine with 106.0 mm (4.17 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. The compression ratio rating is 19.0:1. This engine produced 142 PS (104.4 kW; 140 HP) at 2,200 rpm of output power.

The John Deere 6140D is equipped with power steering, hydraulic wet disc brakes, ROPS or Cab (optional) and 157.8 liters (41.7 US gal.; 34.7 Imp. gal) fuel tank.

Following attachments are available for the John Deere 6140D utility tractor:

  • John Deere H260 loader
  • John Deere H310 loader

John Deere 6140D Specifications

General Specifications
Model John Deere 6140D
Length 4,210 mm (165.7 in)
Width 2,450 mm (96.5 in)
Height (cab) 2,740 mm (107.9 in)
Wheel base 2,450 mm (96.5 in)
Ground clearance 450 mm (17.7 in)
Weight 2WD ROPS: 3,590 kg (7,915 lbs)
4WD ROPS: 4,150 kg (9,149 lbs)
Fuel tank capacity 157.8 liters (41.7 US gal.; 34.7 Imp. gal)
Battery 12V
Cabin type ROPS or Cab (optional)
Engine
Engine model John Deere PowerTech PVX
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 4.5 L, 4,523 cm2, (276.0 cu·in)
Bore and stroke 106.0 mm X 127.0 mm (4.17 in X 5 in)
Compression ratio 19.0:1
Horsepower 142 PS (104.4 kW; 140.0 HP) at 2,200 rpm
Torque 573.6 N·m (58.5 kg·m, 422.7 ft·lb) at 1,600 rpm
Starter Electric
Oil capacity: 15.0 L (15.9 US. qt, 13.2 Imp. qt.)
Coolant capacity: 18.7 L (19.8 US. qt, 16.5 Imp. qt.)
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Power
Brakes Hydraulic wet disc
Final drive Inboard planetary
Differential lock Mechanical rear limited-slip front differential
Transmission model Top Shaft Synchronized PowrReverser
Transmission type Partially synchronized with wet disc clutch
Gears 9 forward and 9 reverse
Speed Forward: 28.3 kmh (17.6 mph) Reverse: 29.3 kmh (18.2 mph)
Transmission model 12-Speed PowrReverser
Transmission type Partially synchronized with wet disc clutch
Gears 12 forward and 12 reverse
Transmission model Hi-Lo PowrReverser
Transmission type Partially synchronized with wet disc clutch
Gears 24 forward and 12 reverse
Tires
Front tires Ag: 13.6-24
Rear tires Ag: 18.4-34
Three-Point Hitch
Category II
Control type Position control or draft-control (optional)
Lift capacity (at 610 mm/24 in) 2,495 kg (5,500 lbs)
Optional: 3,310 kg (7,300 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 540/1000 rpm
Hydraulic system
Hydraulic type Open center
Hydraulic capacity 2828 L (747.1 US. gal, 622.1 Imp. gal.)
Valves 2 or 3
Pump flow 20.0 gpm (75.7 lpm)
SCV flow 20.0 gpm (75.7 lpm)
