John Deere 6155R

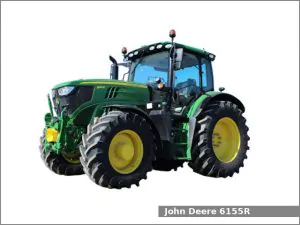

John Deere 6155RThe John Deere 6155R is a 2WD or 4WD row-crop tractor from the 6R series. This tractor has been manufactured by John Deere in Waterloo, Iowa, USA from 2015. The John Deere 6155R is equipped with a 6.8 L (414.0 cu·in) six-cylinder diesel engine and one of four transmissions: a partial power shift transmission with 16 forward and 16 reverse gears, a partial power shift transmission with 20 forward and 20 reverse gears, a eight-speed power shift transmission with 24 forward and 24 reverse gears or infinitely variable transmission with infinite forward and reverse gears.

The JD 6155R row-crop tractor used the John Deere PowerTech PVS engine. It is a 6.8 L, 6,784 cm2, (414.0 cu·in) six-cylinder turbocharged aftercooled diesel engine with 105.0 mm (4.13 in) of the cylinder bore and 127.0 mm (5.00 in) of the piston stroke. This engine produced 157.2 PS (115.6 kW; 155.0 HP) at 2,100 rpm of output power.

The John Deere 6155R is equipped with power steering, hydraulic wet disc brakes, cab standard and 270.0 liters (71.3 US gal.; 59.4 Imp. gal) fuel tank.

John Deere 6155R Specifications

General Specifications
ModelJohn Deere 6155R
Wheel base 2WD: 2,980 mm (117.3 in)
4WD: 2,760 mm (108.7 in)
Ground clearance (front axle) 2WD: 460 mm (18.1 in)
4WD: 590 mm (23.2 in)
Weight (shipping)7,725 kg (17,031 lbs)
Fuel tank capacity270.0 liters (71.3 US gal.; 59.4 Imp. gal)
BatteryTwo 12V, CCA 600A
Cabin typeCab standard
Engine modelJohn Deere PowerTech PVS
Engine typeFour-stroke, liquid-cooled, inline
Fuel typeDiesel
Displacement6.8 L, 6,784 cm2, (414.0 cu·in)
Bore and stroke105.0 mm X 127.0 mm (4.13 in X 5 in)
Horsepower157.2 PS (115.6 kW; 155.0 HP) at 2,100 rpm
Transmission and chassis
Chassis4×2 2WD or 4×4 MFWD 4WD
Steering typePower
BrakesHydraulic wet disc
Final driveInboard planetary
Differential lockElectrohydraulic front and rear
Transmission modelPowerQuad PLUS
Transmission typePartial power shift
Gears16 forward and 16 reverse
Transmission modelAutoQuad PLUS
Transmission typePartial power shift
Gears20 forward and 20 reverse
Transmission modelDirectDrive ECO
Transmission typeEight-speed power shift
Gears24 forward and 24 reverse
Transmission typeInfinitely variable transmission (IVT)
GearsInfinite forward and reverse
Front tires Ag: 11.00-20 (2WD), 380/85R30 (4WD)
Rear tires Ag: 480/80R46 (2WD), 480/80R42 (4WD)
Three-Point Hitch
Control typeElectronic lower link draft sensing
Lift capacity4,170 kg (9,195 lbs)
PTO (Power take-off shaft)
Rear PTO typeIndependent with electro-hydraulic clutch
Rear PTO speed
Hydraulic system
Hydraulic typeClosed-center pressure and flow compensated (PFC)
Pressure2900 psi (199.9 bar)
Valves2 to 4
Pump flow30.1 gpm (113.9 lpm)
SCV flow26.4 gpm (99.9 lpm)
