John Deere 620

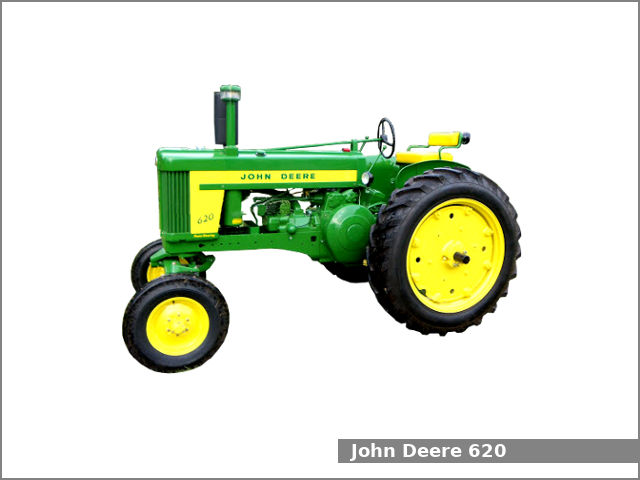

John Deere 620The John Deere 620 is a 2WD row-crop tractor from the Two-Cylinder 20 series. This tractor was manufactured by John Deere in Waterloo, Iowa, USA from 1956 to 1958. The John Deere 620 is equipped with a 5.0 L (303.0 cu·in) two-cylinder engine and an unsynchronized gear transmission with mechanical dry disc clutch and 6 forward and 1 reverse gears.

The JD 620 row-crop tractor used the John Deere engine. It is a 5.0 L, 4,965 cm2, (303.0 cu·in) two-cylinder natural aspirated engine with 140.0 mm (5.51 in) of the cylinder bore and 162.0 mm (6.38 in) of the piston stroke. This engine was available for gasoline, LP-gas, or all-fuel.

The John Deere 620 is equipped with power assist steering, differential mechanical contracting band brakes and open operator station.

John Deere 620 Specifications

General Specifications
ModelJohn Deere 620
Length Standard: 3,430 mm (135.0 in)
High-crop: 3,730 mm (147.2 in)
Width Standard: 2,200 mm (86.6 in)
High-crop: 1,870 mm (74.0 in)
Height Standard: 2,230 mm (87.8 in)
High-crop: 2,450 mm (96.7 in)
Wheel base2,280 mm (89.8 in)
Weight3,085 kg (6,801 lbs)
Fuel tank capacity All-fuel: 77.6 liters (20.5 US gal.; 17.1 Imp. gal)
Gasoline: 84.2 liters (22.2 US gal, 18.5 Imp. gal)
LP-gas: 125.0 liters (33.0 US gal, 27.5 Imp. gal)
BatteryTwo 6V
Cabin typeOpen operator station
Engine
Engine modelJohn Deere
Engine typeFour-stroke, liquid-cooled, inline
Cylinders2
Fuel typeGasoline
Displacement5.0 L, 4,965 cm2, (303.0 cu·in)
Bore and stroke140.0 mm X 162.0 mm (5.51 in X 6.38 in)
Horsepower
StarterElectric
Oil capacity:7.6 L (8 US. qt, 6.7 Imp. qt.)
Coolant capacity:24.6 L (26 US. qt, 21.6 Imp. qt.)
Transmission and chassis
Chassis4×2 2WD
Steering typePower assist
BrakesDifferential mechanical contracting band
Transmission modelJohn Deere
Transmission typeUnsynchronized gear with mechanical dry disc clutch
Gears6 forward and 1 reverse
Speed Forward: 18.5 kmh (11.5 mph) Reverse: 4.8 (3 mph)
Transmission oil capacity22.7 L (6 US. gal, 5 Imp. gal.)
Tires
Front tiresAg: 6.00-16, 7.50-20 (high-crop)
Rear tiresAg: 12.4-38, 13-30
Three-Point Hitch
CaterogyII
Control type
Lift capacity (at ends)
PTO (Power take-off shaft)
Rear PTO type
Rear PTO speed540 rpm
Hydraulic system
Hydraulic type
Pressure1200 psi (82.7 bar)
Valves1 or 2
Pump flow8.9 gpm (33.7 lpm)
