John Deere 6600

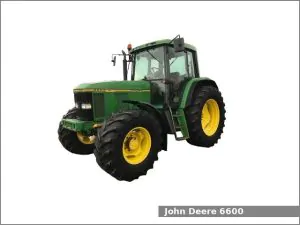

John Deere 6600The John Deere 6600 is a 4WD row-crop tractor from the 6000 series. This tractor was manufactured by John Deere in Mannheim, Baden-Württemberg, Germany from 1993 to 1997. The John Deere 6600 is equipped with a 5.9 L (359.0 cu·in) six-cylinder diesel engine and one of three transmission variants.

The JD 6600 row-crop tractor used the John Deere 6068 engine. It is a 5.9 L, 5,883 cm2, (359.0 cu·in) six-cylinder turbocharged diesel engine with 106.0 mm (4.17 in) of the cylinder bore and 110.0 mm (4.33 in) of the piston stroke. This engine produced 111.5 PS (82.0 kW; 110.0 HP) at 2,100 rpm of output power.

The John Deere 6600 is equipped with power steering, wet disc brakes, Cab (standard) with air-conditioning and 207.0 liters (54.7 US gal.; 45.5 Imp. gal) fuel tank.

John Deere 6600 Specifications

General Specifications
Model John Deere 6600
Length 4,500 mm (177.2 in)
Width 2,310 mm (90.9 in)
Height (cab) 2,810 mm (110.6 in)
Wheel base 2,640 mm (103.9 in)
Weight 4,650 kg (10,251 lbs)
Fuel tank capacity 207.0 liters (54.7 US gal.; 45.5 Imp. gal)
Battery 12V, 174Ah
Cabin type Cab (standard) with air-conditioning
Engine
Engine model John Deere 6068
Engine type Four-stroke, liquid-cooled, inline
Cylinders 6
Fuel type Diesel
Displacement 5.9 L, 5,883 cm2, (359.0 cu·in)
Bore and stroke 106.0 mm X 110.0 mm (4.17 in X 4.33 in)
Horsepower 111.5 PS (82.0 kW; 110 HP) at 2,100 rpm
Torque 455.1 N·m (46.4 kg·m, 335.4 ft·lb) at 1,400 rpm
Starter Electric
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Power
Brakes Wet disc
Differential lock Electro-hydraulic
Transmission model John Deere PowrQuad
Transmission type Partial power shift with wet disc clutch
Gears 20 forward and 20 reverse
Speed Forward: 30.2 kmh (18.8 mph)
Transmission model John Deere PowrQuad
Transmission type
Gears 16 forward and 12 reverse
Transmission model John Deere PowrQuad
Transmission type
Gears 24 forward and 16 reverse
Tires
Front tires Ag: 16.9R26
Rear tires Ag: 18.8R38
Three-Point Hitch
Category III/IIIN
Control type
Lift capacity (at ends) 6,180 kg (13,630 lbs)
PTO (Power take-off shaft)
Front PTO type Independent
Front PTO speed – rpm
Rear PTO type Independent with electro-hydraulic wet disc clutch
Rear PTO speed 540/1000 or 540/540E/1000 rpm
Hydraulic system
Hydraulic type Closed center
Pressure 2900 psi (199.9 bar)
Pump flow 15.9 gpm (60.2 lpm)
25.4 gpm (96.1 lpm)
