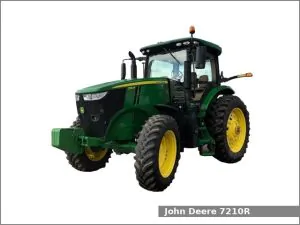

John Deere 7210R

John Deere 7210RThe John Deere 7210R is a 4WD row-crop tractor from the 7R series. This tractor was manufactured by John Deere in Waterloo, Iowa, USA from 2014 to 2019. The JD 7210R is equipped with a 6.8 L (415.0 cu·in) six-cylinder diesel engine and one of three transmissions: a power shift transmission with 20 forward and 20 reverse gears, a full power shift transmission with 23 forward and 11 reverse gears or a infinitely variable transmission with infinite forward and reverse gears.

The JD 7210R row-crop tractor used the John Deere engine. It is a 6.8 L, 6,800 cm2, (415.0 cu·in) six-cylinder turbocharged diesel engine with 106.0 mm (4.17 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. The compression ratio rating is 17.2:1. This engine produced 213 PS (156.6 kW; 210.0 HP) at 2,100 rpm of output power.

The Deere 7210R is equipped with hydrostatic power or ActiveCommand (optional) steering, hydraulic wet disc brakes, CommandView III cab (standard) or Premium cab (optional) and 503.4 liters (133 US gal.; 110.7 Imp. gal) fuel tank.

John Deere 7210R Specifications

General Specifications
Model John Deere 7210R
Length 5,510 mm (216.9 in)
Width
Height (cab) G47 tires: 3,250 mm (128 in)
G48 tires: 3,350 mm (131.9 in)
Wheel base 2,920 mm (115 in)
Ground clearance (front axle) G42 tires: 600 mm (23.6 in)
G43 tires: 630 mm (24.8 in)
Weight 11,945 kg (26,334 lbs)
Fuel tank capacity CQ: 503.4 liters (133.0 US gal.; 110.7 Imp. gal)
e23: 473.1 liters (125.0 US gal, 104.1 Imp. gal)
IVT: 518.5 liters (137.0 US gal, 114.1 Imp. gal)
Exhaust fluid (DEF) 25.7 liters (6.8 US gal, 5.7 Imp. gal)
Battery Two 12V, CCA 925A
Cabin type CommandView III cab (standard) or Premium cab (optional)
Engine
Engine model John Deere
Engine type Four-stroke, liquid-cooled, inline
Cylinders 6
Fuel type Diesel
Displacement 6.8 L, 6,800 cm2, (415.0 cu·in)
Bore and stroke 106.0 mm X 127.0 mm (4.17 in X 5 in)
Compression ratio 17.2:1
Horsepower 213 PS (156.6 kW; 210.0 HP) at 2,100 rpm
Starter Electric
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Hydrostatic power or ActiveCommand Steering (optional)
Brakes Hydraulic wet disc
Differential lock Full-locking electro-hydraulic rear
Limited slip front
Electro-hydraulic front (optional)
Transmission model John Deere CommandQuad Eco
Transmission type Power shift with hydraulic wet disc clutch
Gears 20 forward and 20 reverse
Speed Forward: 50.0 kmh (31.1 mph)
Transmission model John Deere e23
Transmission type Full power shift with hydraulic wet disc clutch
Gears 23 forward and 11 reverse
Speed Forward: 55.0 kmh (34.2 mph) Reverse: 30.0 kmh (18.6 mph)
Transmission model John Deere AutoPowr IVT
Transmission type Infinitely variable transmission
Gears Infinite forward and reverse
Tires
Front tires Ag: 380/80R38
Rear tires Ag: 480/80R50
Three-Point Hitch
Category III/IIIN
Control type Electro-hydraulic draft sensing
Lift capacity 7,300 kg (16,000 lbs)
Optional: 10,206 kg (22,500 lbs)
Rear Arms Hydraulic center link (optional)
Front Hitch
Category IIIN (optional)
Front lift 5,200 kg (11,465 lbs)
PTO (Power take-off shaft)
Front PTO type Independent
Front PTO speed 1000 (1.375), 1000 (1.75) rpm
Rear PTO type Independent
Rear PTO speed 1000 (1.75), 540/1000 (1.375) rpm
Hydraulic system
Hydraulic type Closed-center pressure and flow compensated
Hydraulic capacity 65.1 L (17.2 US. gal, 14.3 Imp. gal.)
Pressure 2958 psi (203.9 bar)
Valves Rear: 3 to 6
Mid: 0 to 3
Front: 0 to 2
Pump flow 32.0 gpm (121.1 lpm)
Optional: 43.0 gpm (162.8 lpm)
Optional: 59.0 gpm (223.3 lpm )
Rear SCV flow 35.0 gpm (132.5 lpm)
Front SCV flow 33.0 gpm (124.9 lpm)
