John Deere 7600

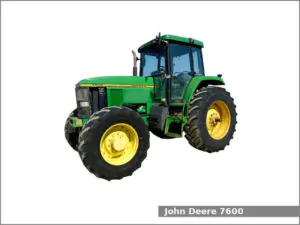

John Deere 7600The John Deere 7600 is a 2WD or 4WD row-crop tractor from the 7000 series. This tractor was manufactured by John Deere in Waterloo, Iowa, USA from 1992 to 1996. The John Deere 7600 is equipped with a 6.8 L (414.0 cu·in) six-cylinder diesel engine and one of two transmissions: a partial power shift transmission with 16 forward and 12 reverse gears or a full power shift transmission with 19 forward and 7 reverse gears.

The JD 7600 row-crop tractor used the John Deere diesel engine. It is a 6.8 L, 6,784 cm2, (414.0 cu·in) six-cylinder turbocharged diesel engine with 106.0 mm (4.17 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. The compression ratio rating is 17.2:1. This engine produced 125.8 PS (92.5 kW; 124.0 HP) at 2,100 rpm of output power.

The John Deere 7600 is equipped with power steering, differential hydraulic wet disc brakes, ComfortGard cab with air-conditioning, and 246.0 liters (65.0 US gal, 54.1 Imp. gal) or 344.4 liters (91.0 US gal, 75.8 Imp. gal) fuel tank.

Following attachments are available for the John Deere 7600 row-crop tractor:

  • John Deere 720 loader
  • John Deere 725 loader
  • John Deere 740 loader

John Deere 7600 Specifications

General Specifications
Model John Deere 7600
Wheel base 2WD: 2,900 mm (114.2 in)
4WD: 2,790 mm (110.2 in)
Ground clearance 4WD: 560 mm (22 in)
Weight (operating) 4WD: 6,780 kg (14,947 lbs)
Fuel tank capacity 246.0 liters (65.0 US gal, 54.1 Imp. gal)
344.4 liters (91.0 US gal, 75.8 Imp. gal)
Battery 12V
Cabin type ComfortGard cab with air-conditioning
Engine model John Deere
Engine type Four-stroke, liquid-cooled, inline
Cylinders 6
Fuel type Diesel
Displacement 6.8 L, 6,784 cm2, (414.0 cu·in)
Bore and stroke 106.0 mm X 127.0 mm (4.17 in X 5 in)
Compression ratio 17.2:1
Horsepower 125.8 PS (92.5 kW; 124.0 HP) at 2,100 rpm
Starter Electric
Coolant capacity: 23.7 L (25 US. qt, 20.9 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Power
Brakes Differential hydraulic wet disc
Final drive Inboard planetary
Differential lock Electro-hydraulic rear
Transmission model John Deere PowrQuad
Transmission type Partial power shift with wet disc clutch
Gears 16 forward and 12 reverse
Transmission model John Deere PowerShift
Transmission type Full power shift with wet disc clutch
Gears 19 forward and 7 reverse
Speed Forward: 39.0 kmh (24.2 mph) Reverse: 16.3 (10.1 mph)
Front tires Ag: 10.00-16 (2WD), 14.9-28 (4WD)
Rear tires Ag: 18.4-38
Three-Point Hitch
Caterogy IIIN/II
Control type Position and draft control
Lift capacity (at ends) 3,277 kg (7,225 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 540/1,000 rpm
Hydraulic system
Hydraulic type Closed center pressure and flow compensated
Hydraulic capacity 85.2 L (90.03 US. qt, 74.97 Imp. qt.)
Pressure 2900 psi (199.9 bar)
Valves 2 to 3
SCV flow 25.4 gpm (96.1 lpm)
