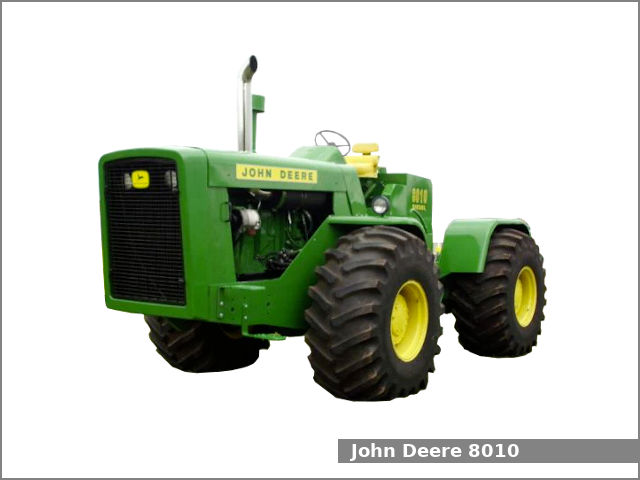

John Deere 8010

John Deere 8010The John Deere 8010 is a four-wheel drive tractor manufactured by John Deere in Waterloo, Iowa, USA during 1960. The John Deere 8010 is equipped with a 7.0 L (425.0 cu·in) six-cylinder diesel engine and a gear type transmission with 9 forward and 2 reverse gears.

The JD 8010 four-wheel drive used the Detroit Diesel 671E engine. It is a 7.0 L, 6,964 cm2, (425.0 cu·in) six-cylinder natural aspirated diesel engine with 108.0 mm (4.25 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. The compression ratio rating is 17.0:1. This engine produced 218.0 PS (160.3 kW; 215.0 HP) at 2,100 rpm of output power.

The John Deere 8010 is equipped with articulated power steering, pneumatic drum brakes, an open operator station and 401.2 liters (106 US gal.; 88.3 Imp. gal) fuel tank.

John Deere 8010 Specifications

General Specifications
Model John Deere 8010
Length 6,040 mm (237.8 in)
Width 2,430 mm (95.7 in)
Height (steering wheel) 2,510 mm (98.8 in)
Wheel base 3,040 mm (119.7 in)
Weight 8,935 kg (19,698 lbs)
Fuel tank capacity 401.2 liters (106.0 US gal.; 88.3 Imp. gal)
Battery –
Cabin type Open operator station
Engine
Engine model Detroit Diesel 671E
Engine type Four-stroke, liquid-cooled, inline
Cylinders 6
Fuel type Diesel
Displacement 7.0 L, 6,964 cm2, (425.0 cu·in)
Bore and stroke 108.0 mm X 127.0 mm (4.25 in X 5 in)
Compression ratio 17.0:1
Horsepower 218.0 PS (160.3 kW; 215.0 HP) at 2,100 rpm
Starter Electric
Oil capacity: 17.0 L (18 US. qt, 15 Imp. qt.)
Coolant capacity: 45.4 L (48 US. qt, 39.9 Imp. qt.)
Transmission and chassis
Chassis 4×4 articulated 4WD
Steering type Articulated power
Brakes Pneumatic drum
Transmission model –
Transmission type Gear type
Gears 9 forward and 2 reverse
Speed Forward: 29.0 kmh (18 mph) Reverse: 9.1 kmh (5.7 mph)
Tires
Front tires Ag: 23.1-26
Industrial: 18.00×25
Rear tires Ag: 23.1-26
Industrial: 18.00×25
Hydraulic system
Hydraulic type –
Hydraulic capacity 94.6 L (25 US. gal, 20.8 Imp. gal.)
Pump flow 40.0 gpm (151.4 lpm)
60.0 gpm (227.1 lpm)
