John Deere 8960

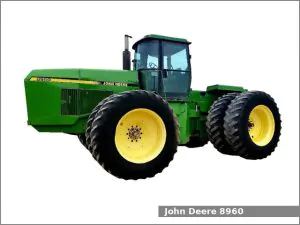

John Deere 8960The John Deere 8960 is a four-wheel tractor drive from the 8060 series. This tractor was manufactured by John Deere in Waterloo, Iowa, USA from 1989 to 1993. The John Deere 8960 is equipped with a 14.0 L (854.9 cu·in) six-cylinder diesel engine and one of three transmissions: a partially synchronized transmission with 12 forward and 3 reverse gears, a partial power shift transmission with 24 forward and 6 reverse gears, or a full powershift transmission with 12 forward and 2 reverse gears.

The JD 8960 four-wheel drive used the Cummins engine. It is a 14.0 L, 14,010 cm2, (855.0 cu·in) six-cylinder turbocharged diesel engine with 140.0 mm (5.51 in) of the cylinder bore and 152.0 mm (5.98 in) of the piston stroke. The compression ratio rating is 14.0:1. This engine produced 375.2 PS (275.9 kW; 370.0 HP) at 1,900 rpm of output power.

The John Deere 8960 is equipped with articulated power steering, hydraulic wet disc brakes, Sound-Gard Cab (standard), and 832.7 liters (220 US gal.; 183.2 Imp. gal) fuel tank.

John Deere 8960 Specifications

General Specifications
Model John Deere 8960
Length 6,830 mm (268.9 in)
Width
Height
Wheel base 3,400 mm (133.9 in)
Weight (operating) 15,930 kg (35,120 lbs)
Fuel tank capacity 832.7 liters (220 US gal.; 183.2 Imp. gal)
Battery Three 12V, CCA 925A
Cabin type Sound-Gard Cab (standard)
Engine
Engine model Cummins
Engine type Four-stroke, liquid-cooled, inline
Cylinders 6
Fuel type Diesel
Displacement 14.0 L, 14,010 cm2, (855.0 cu·in)
Bore and stroke 140.0 mm X 152.0 mm (5.51 in X 5.98 in)
Compression ratio 14.0:1
Horsepower 375.2 PS (275.9 kW; 370.0 HP) at 1,900 rpm
Starter Electric
Coolant capacity: 68.1 L (72 US. qt, 59.9 Imp. qt.)
Transmission and chassis
Chassis 4×4 articulated 4WD
Steering type Articulated power
Brakes Hydraulic wet disc
Transmission model John Deere Syncro
Transmission type Partially synchronized with hydraulic wet disc clutch
Gears 12 forward and 3 reverse
Transmission model John Deere PowrSync
Transmission type Partial power shift with hydraulic wet disc clutch
Gears 24 forward and 6 reverse
Transmission model John Deere Power Shift
Transmission type Full power shift with hydraulic wet disc clutch
Gears 12 forward and 2 reverse
Speed Forward: 32.6 kmh (20.3 mph) Reverse: 9.8 kmh (6.1 mph)
Tires
Front tires Ag: 20.8R-38
Rear tires Ag: 20.8R-38
Three-Point Hitch
Category IV
Control type
Lift capacity (at ends) 6,335 kg (13,970 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 1000 rpm
Hydraulic system
Hydraulic type Closed-center pressure compensated
Hydraulic capacity 177.9 L (47 US. gal, 39.1 Imp. gal.)
Valves 3
Pump flow 39.6 gpm (149.9 lpm)
SCV flow 33.3 gpm (126.1 lpm)
